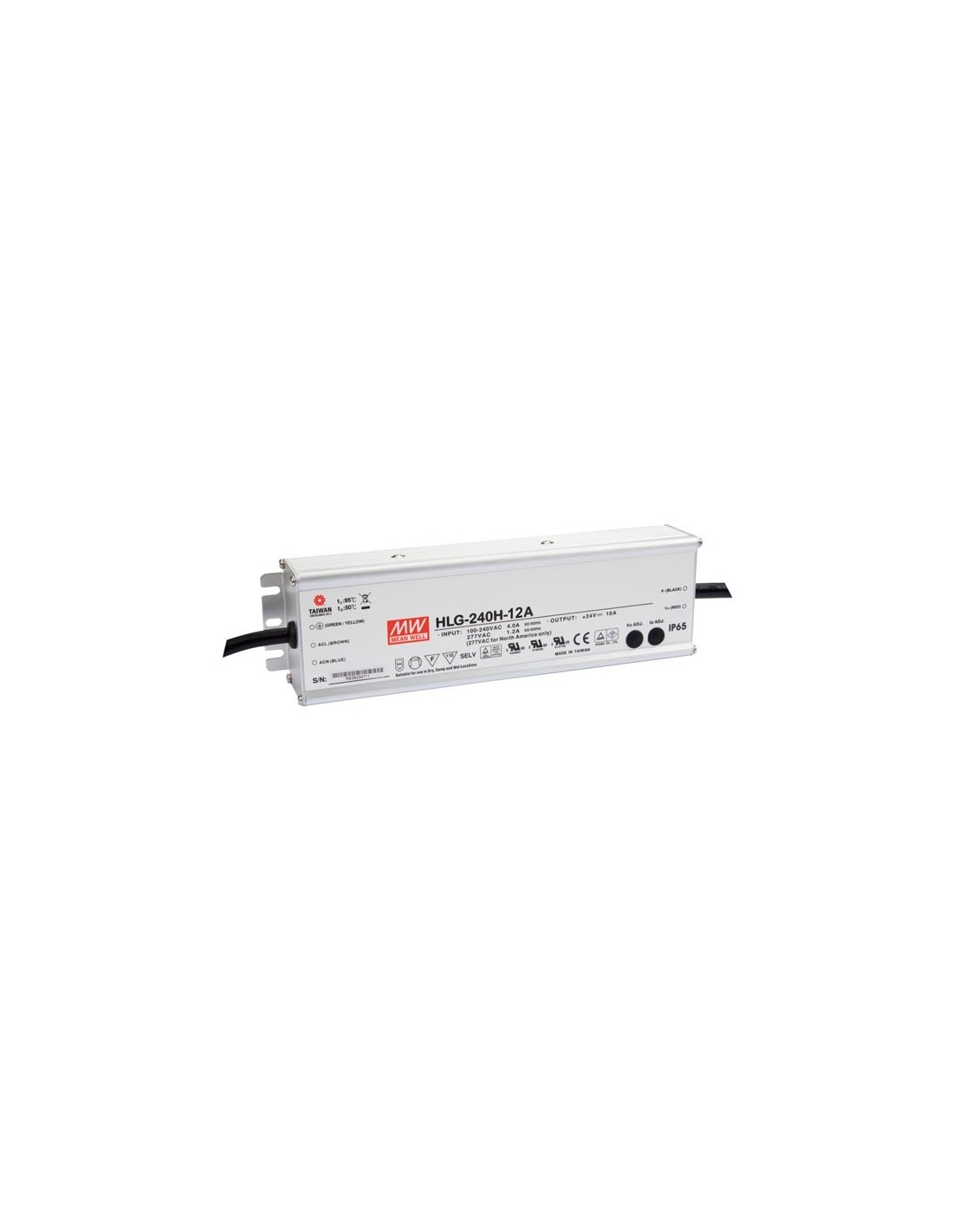

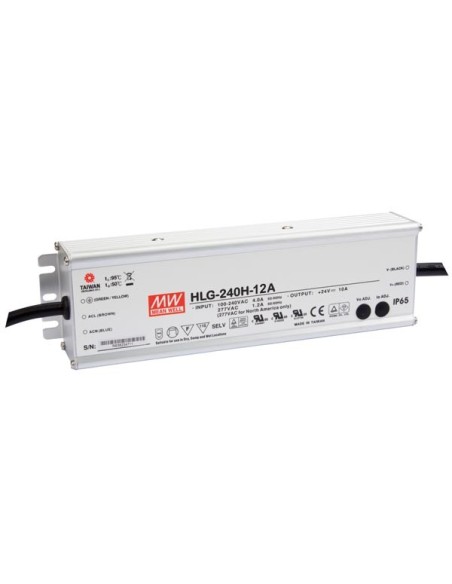

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 240 W - 12 V
HLG-240H-12A
Available
€119.91
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 240 W - 12 V
Specification(s):
- universal AC input / full range (up to 305 VAC)
- built-in active PFC function
- protections: short-circuit / overload / overvoltage / overheating
- cooling by free air convection
- OCP point adjustable through output cable or internal potentiometer
- suitable for LED lighting and moving sign applications
- IP65 design for indoor or outdoor installations
- in compliance with worldwide safety regulations for lighting
- suitable for dry / damp / wet locations
- 5 years warranty (Note.10)
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 8-16 A
- Output current rating: 16 A
- Output power rating: 240 W
- Technical data
- Input efficiency: 90 %
- Mounting type: Screw
- Power supply series: HLG
- Environmental data
- IP rating: IP65
- Usage location: Indoor & outdoor
- Power supply
- Input current rating at 115 VAC: 4 A
- Input current rating at 227 VAC: 1.2 A
- Input current rating at 230 VAC: 2 A
- Input voltage rating VAC: 90-305 V
- Output voltage rating VDC: 12 V
- Range input frequency: 47-63 Hz
- Technology type: Constant current mode, Constant voltage mode
- Input voltage rating VDC: 127-431 V
- Product basic info
- Colour: Metal
- Depth: 244.2 mm
- Height: 38.8 mm
- Weight: 1300 g
- Width: 68 mm
- Material: Metal
- EAN: 8720207824439
