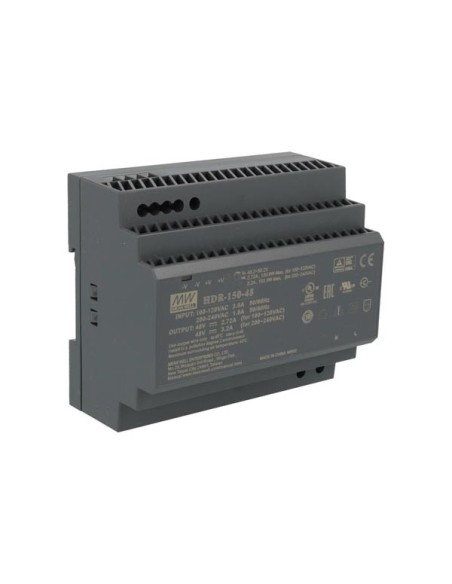

INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 48 V
HDR-150-48
Available
€79.96
Tax included
INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 48 V
Specification(s):
- ultra slim design with 105 mm (6SU) width
- universal input 85 - 264 VAC (277 VAC operational)
- no load power consumption < 0.3 W
- IEC protection: class II
- adjustable DC output voltage
- protections: short circuit / overload / over voltage
- cooling by free air convection
- DIN rail TS-35/7.5 or 15 mountable
- over voltage: category III
- LED indicator: power on
- 3 years warranty
- applications:
- household control system
- building automation
- industrial control system
- factory automation
- electro-mechanical apparatus
- for professional use only
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Electrical data
- Output current rating: 3.2 A
- Output power rating at 115 VAC: 130.6 W
- Output power rating at 230 VAC: 153.6 W
- Technical data
- Input efficiency: 90.5 %
- Mounting type: DIN rail
- Power supply series: HDR
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 2.72 A
- Input current rating at 230 VAC: 3.2 A
- Input voltage rating VAC: 85-264 V
- Output voltage rating VDC: 48 V
- Range input frequency: 47-63 Hz
- Input voltage rating VDC: 120-370 V
- Product basic info
- Colour: Black
- Depth: 54.5 mm
- Height: 90 mm
- Weight: 350 g
- Width: 105 mm
- Material: Flame-retardant PC (polycarbonate)
- EAN: 8720207804592
