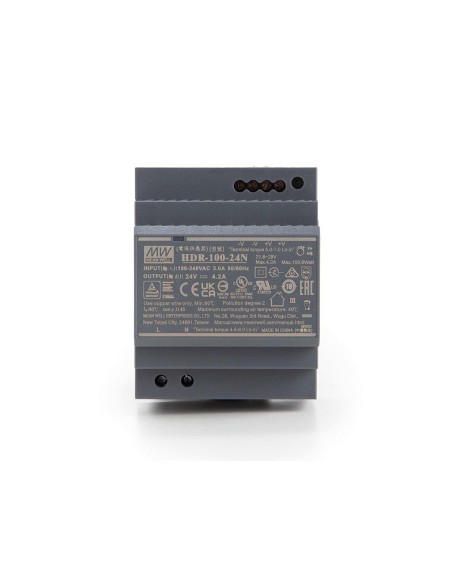

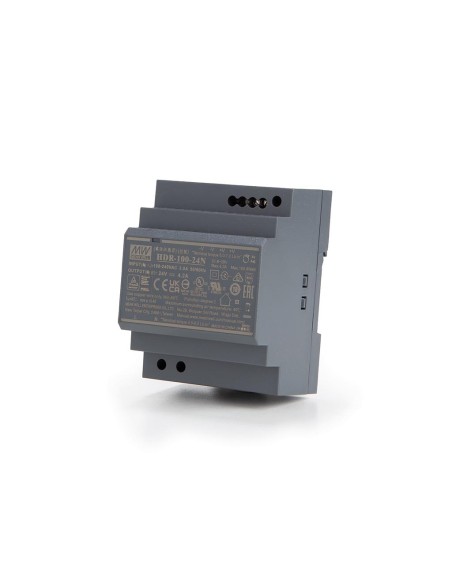

INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 100 W - 24 V - 4.2 A
HDR-100-24N
Available
€50.95
Tax included
INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 100 W - 24 V - 4.2 A
Specification(s):
- ultra slim design with 70 mm (4SU) width
- universal input 85-264 VAC (277 VAC operational)
- no load power consumption <0.3 W
- isolation class II
- DC output voltage adjustable
- protections: short circuit / overload / over voltage
- cooling by free air convection (working temperature : -30 - +70°C)
- DIN rail TS-35/7.5 or 15 mountable
- over voltage category III
- LED indicator power on
- 3 year warranty
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Electrical data
- Output current rating: 4.2 A
- Output power rating: 100.8 W
- Technical data
- Input efficiency: 90 %
- Mounting type: DIN rail
- Power supply series: HDR
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 3 A
- Input current rating at 230 VAC: 1.6 A
- Input voltage rating VAC: 85-264 V
- Output voltage rating VDC: 24 V
- Range input frequency: 47-63 Hz
- Input voltage rating VDC: 120-370 V
- Product basic info
- Colour: Black
- Depth: 54.5 mm
- Height: 90 mm
- Weight: 270 g
- Width: 70 mm
- Material: Flame-retardant PC (polycarbonate)
- EAN: 8720207835640
