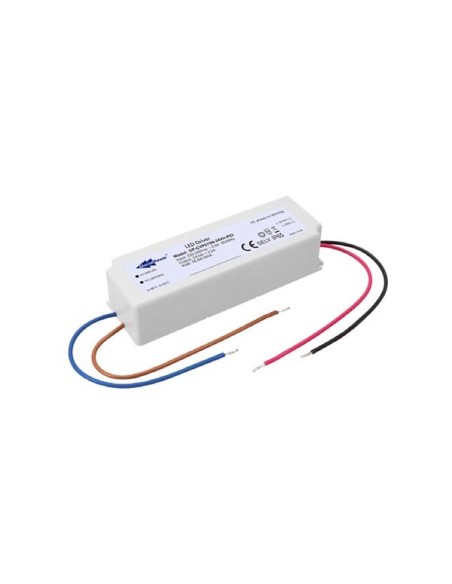

CONSTANT VOLTAGE LED POWER SUPPLY - 75 W 24 V 3.2 A with TRIAC DIMMING
CONSTANT VOLTAGE LED POWER SUPPLY - 75 W 24 V...

CONSTANT VOLTAGE LED POWER SUPPLY - 75 W 24 V 3.2 A with TRIAC DIMMING

GP-CVP075N-24V
Available
€54.96
Tax included
CONSTANT VOLTAGE LED POWER SUPPLY - 75 W 24 V 3.2 A with TRIAC DIMMING


Specification(s):
  • AC phase-cut dimming
  • input range: 205-256 V~
  • constant voltage design
  • work with leading edge and trailing edge TRIAC dimmers
  • fully potted suitable for dry and damp location applications
  • protections: over current / short circuit / over voltage / over temperature
  • IP65 design for indoor or outdoor installations
  • suitable for LED strip appliances
  • 2 years warranty
Feature(s):
  • Physical properties
  • Wire length: 14.5 cm
  • Number of outputs: 1
  • Housing type: Enclosed
  • Electrical data
  • Output current rating: 3.2 A
  • Output power rating: 76.8 W
  • Output efficiency: 84 %
  • Technical data
  • Series: GP
  • Mounting type: Screw
  • Dimmable: Yes
  • Set-up options
  • Dimming type: TRIAC dimming
  • Dimming range: 5-100 %
  • Environmental data
  • IP rating: IP65
  • Power supply
  • Input current rating: 0.9 A
  • Input voltage rating VAC: 205-256 V
  • Output voltage rating VDC: 24 V
  • Technology type: Constant voltage mode
  • Product basic info
  • Colour: White
  • Depth: 137.5 mm
  • Height: 32 mm
  • Weight: 415 g
  • Width: 47 mm
  • Material: ABS


  • EAN: 5410329726959
