2 MP IP CAMERA - PTZ MODEL

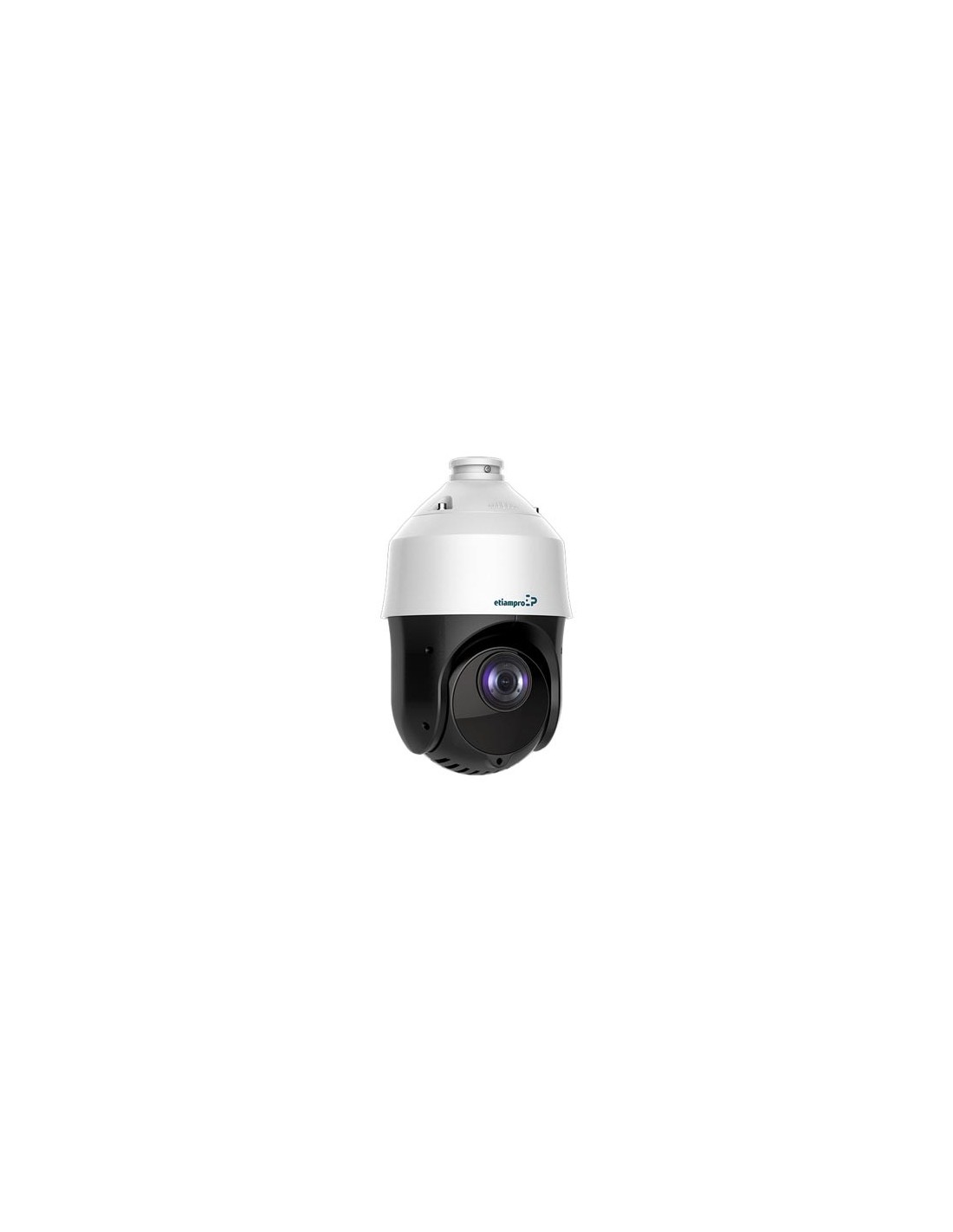

2 megapixel IP speed dome Pan-Tilt-Zoom camera. The camera has high power IR LEDs built-in for night surveillance up to 100 meter. The high performance zoom lens has an optical zoom of 15x. With its 120 dB Wide Dynamic Range (WDR) technology image fidelity without detail loss is guaranteed Optimal compression supporting H.265+ With no difficult IP setup and only one cable for power and data, the PoE feature connects cameras and NVRs quickly and easily.

Specification(s):
  • 1/2.8" progressive scan CMOS
  • up to 1920 x 1080 @30 fps resolution
  • up to 100 m IR distance
  • 15x optical zoom, 16x digital zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Smart IR
  • 12 VDC & PoE (802.3at, class 4)
  • supports H. 265+ / H. 265 video compression
  • up to 24 programmable privacy masks
  • supports ROI
  • various applications
  • Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]
  • iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]
  • Windows software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]
  • iOS software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]
Feature(s):
  • camera:
  • image sensor: 1/2.8" progressive scan CMOS
  • min. illumination: colour: 0.005 lux @ F1.6 (AGC on); black/white: 0.001 lux @ F1.6 (AGC on); 0 lux with IR
  • white balance: auto / manual / ATW (auto-tracking white balance) / indoor / outdoor / fluorescent lamp / sodium lamp
  • AGC: auto / manual
  • shutter time: 1/1 s-1/30,000 s
  • day & night: IR cut filter
  • digital zoom: 16x
  • privacy mask: 24 programmable privacy masks
  • focus mode: automatic / semi-automatic / manual
  • WDR (Wide Dynamic Range): 120 dB
  • lens:
  • focal length: 5 mm - 75 mm, 15x optical
  • zoom speed: 2.4 s (optical lens, wide-tele)
  • field of view: horizontal: 53.8° - 4.0°; vertical: 31.9° - 2.3°; diagonal: 60.4° - 4.6°
  • working distance: 10 mm - 1500 mm (wide-tele)
  • aperture range: F1.6 to F3.0
  • IR:
  • max. IR range: 100 m
  • smart IR: yes
  • PTZ:
  • movement range: 360° endless
  • pan speed: configurable, from 0.1°/s to 80°/s; preset speed: 80°/s
  • movement range (tilt): from -15° to 90° (auto-flip)
  • tilt speed: configurable, from 0.1°/s to 80°/s; preset speed: 80°/s
  • proportional zoom: yes
  • presets: 300
  • patrol scan: 8 patrols, up to 32 presets for each patrol
  • pattern scan: 4 pattern scans, record time over 10 minutes for each scan
  • power-off memory: yes
  • park action: preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan
  • PTZ position display: yes
  • preset freezing: yes
  • scheduled task: preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan / dome reboot / dome adjust
  • compression standard:
  • video compression: main stream: H. 265+ / H. 265 / H. 264+ / H. 264; sub stream: H. 265 / H. 264 / MJPEG; third stream: H. 265 / H. 264 / MJPEG
  • H.264 type: main profile / high profile / baseline profile
  • H. 264+: yes
  • H. 265 type: main profile
  • H. 265+: yes
  • video bit rate: 32 Kbps - 16384 Kbps
  • SVC: yes
  • smart feature set
  • basic event detection: motion detection, video tampering detection, exception detection
  • smart event detection: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • ROI encoding: main stream, sub-stream and third stream respectively support four fixed areas
  • smart record: ANR (automatic network replenishment), dual-VCA
  • image:
  • max. resolution: 1920 x 1080
  • main stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • max. frame rate: 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • sub-stream: 50 Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
  • max. frame rate: 60 Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
  • image enhancement: HLC / BLC / 3D DNR / Defog / EIS / Regional exposure / Regional Focus
  • network:
  • network storage: built-in memory card slot, supports Micro SD / SDHC / SDXC, up to 256 GB; NAS (NPS, SMB / CIPS), ANR
  • protocols: IPv4/IPv6, HTTP, HTTPS, 802.1, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API: open-ended, supports ONVIF, ISAPI, and CGI
  • simultaneous live view: up to 20 channels
  • user / host: up to 32 users; 3 levels: Administrator - Operator - User
  • security measures: user authentication (ID and PW), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • web browser: IE 8 to 11, Chrome 31.0-44, Firefox 30.0-51
  • interface:
  • network interface: 1 RJ45 10/100 Mbps Ethernet interface; PoE (802.3at, class4)
  • general:
  • power: 12 VDC, 2.0 A and PoE (802.3at), 42.5 - 57 VDC, 0.6 A, class4; max.: 18W (IR light 6W max.)
  • working temperature: -30 °C - 65 °C (-22 °F - 149 °F)
  • working humidity: < 90%
  • ingress protection: IP66 standard; TVS 4000V lightning protection, surge protection and voltage transient protection
  • material: ADC 12, PC+10% GF
  • dimensions: Ø 165.9 mm x 290 mm (Ø 6.53" x 11.42")
  • weight: 2500 g (5.51 lb.)


  • EAN: 5410329728601
