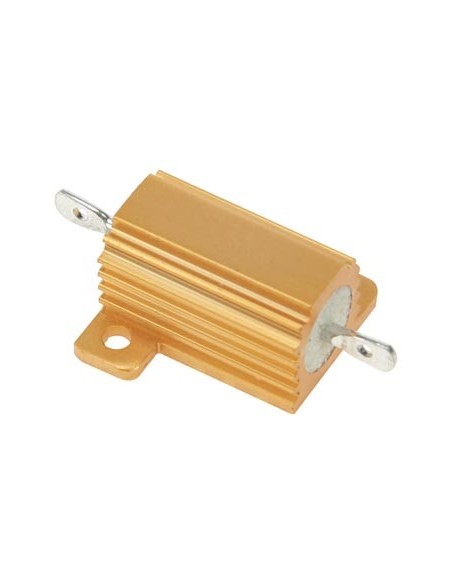

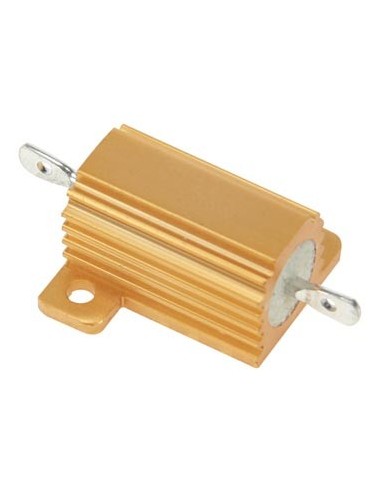

These wirewound 25W resistors can handle continuous high power dissipation in a compact size. The resistor is moulded in an anodized aluminium heat sink for maximum heat dissipation.
Specification(s):
Specification(s):
- applications: instrumentation, TV's and audio systems, video recorders, computers, ...
- resistance: 39K ohm
- power: 25W
- resistance tolerance: ± 5%
- temperature coefficient: ± 200ppm/°C
- load: delta R/R < ±1% + 0.05 ohms (surface temperature rise 350°C max.)
- short-time overload: delta R/R < ±2% + 0.05 ohms (100% rated power 5s)
- insulation resistance: 500VDC / min. 100M ohms
- dielectric withstanding voltage: 3000VAC, 60s
- EAN: 5410329383589
