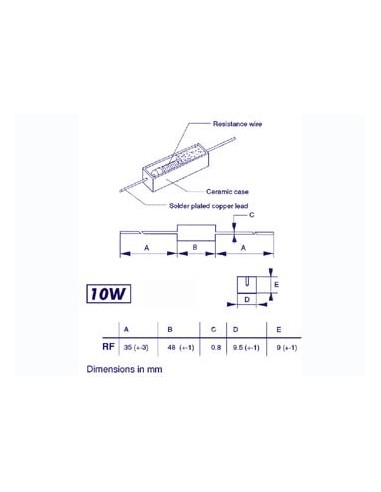

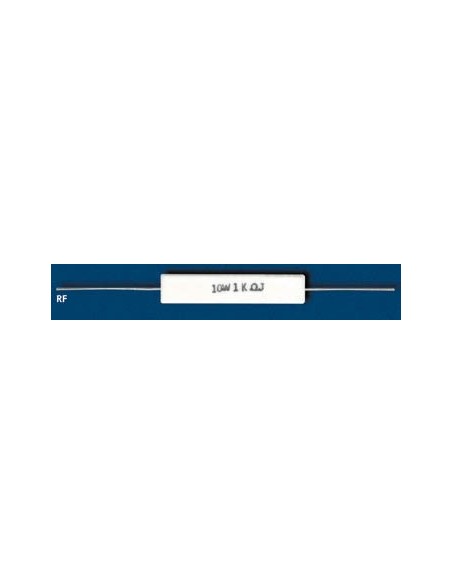

A wire-wound cement resistor, housed in a ceramic case, makes rapid heat dissipation possible and is highly shock- and humidity-resistant. A low-resistance range is available.
Specification(s):
Specification(s):
- applications: instrumentation, TV's and audio systems, video recorders, computers, ...
- power rating: 10W
- resistance range: 0.1E to 18M (E12-series)
- operating temperature: -55°C to +155°C
- tolerance: 5%
- max. operating voltage: 250V
- EAN: 5410329338213
