RESISTOR 5W 10E

The minimum purchase order quantity for the product is 10.

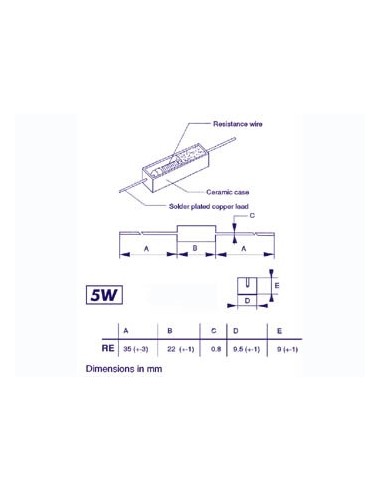

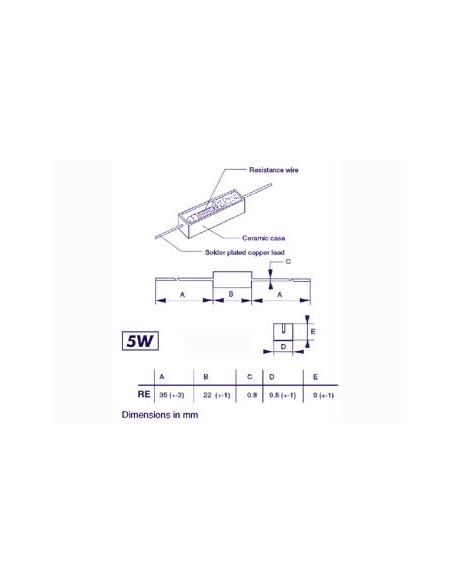

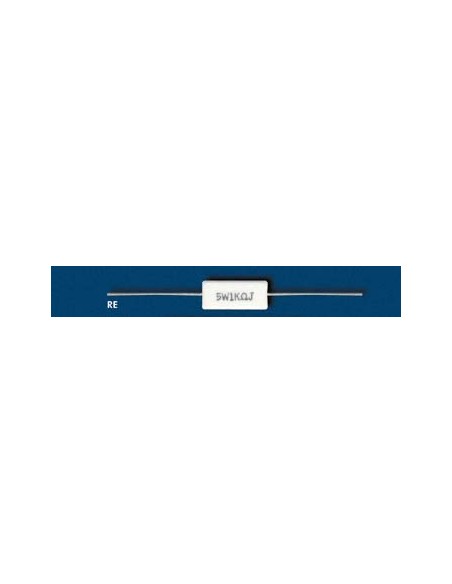

A wire-wound cement resistor, housed in a ceramic case, makes rapid heat dissipation possible and is highly shock- and humidity-resistant. A low-resistance range is available.

Specification(s):
  • applications: instrumentation, TV's and audio systems, video recorders, computers, ...
Feature(s):
  • power rating: 5W
  • resistance range: 0.1E to 22M (E12-series)
  • operating temperature range: -55°C to +155°C
  • tolerance: 5%
  • max. operating voltage: 250V


  • EAN: 5410329294472
