ETCHING TANK WITH AGITATOR AND HEATER - 2.5 L
ETCHING TANK WITH AGITATOR AND HEATER - 2.5 L

ETCHING TANK WITH AGITATOR AND HEATER - 2.5 L

ET20
Out-of-Stock
€162.90
Tax included
ETCHING TANK WITH AGITATOR AND HEATER - 2.5 L

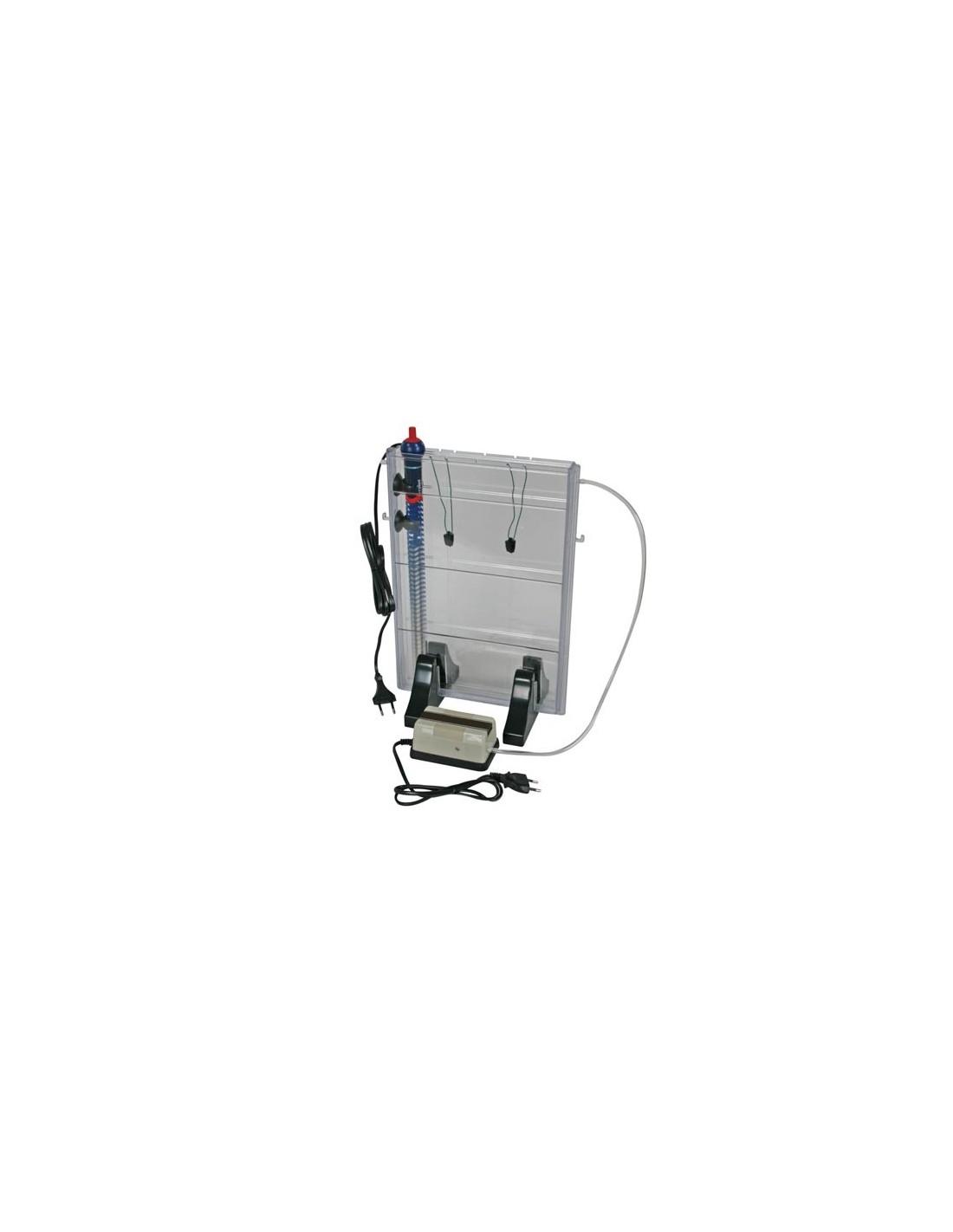

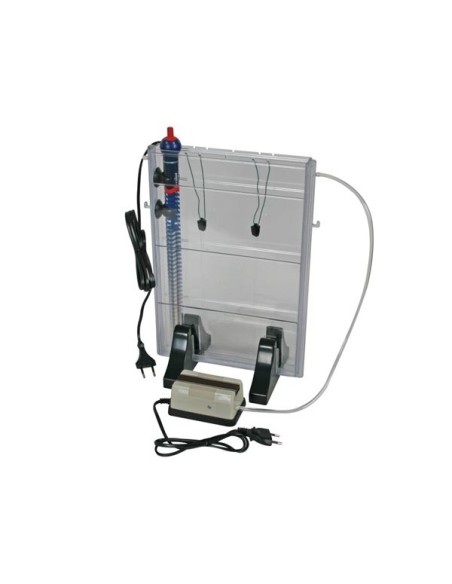

Etching machine for making your own printed circuit boards. Included a small heater, air pump and clips to support printed circuit board. The pump ensures that the etchant dissolves well and quickly. The heating element warms the contents to an optimal temperature of 32 degree Celsius. Tank capacity 2.5 litre.

Specification(s):
  • suitable for prototypes and smaller series
  • for one or both side coated printed circuit boards
  • ferric chloride can be used as etching medium (not included)
  • the average duration for the etching process is 4 minutes
  • heating element and pump with connecting cables and two pin Euro plugs
  • maximum size of printed circuit boards (L x B) 200 x 250 mm
Feature(s):
  • Physical Properties
  • Tank Capacity: 2.5 l
  • Width Inner: 23 cm
  • Height Inner: 35 cm
  • Depth Inner: 3 cm
  • Environmental Data
  • Maximum Operating Temperature: 32 °C
  • Operational Properties
  • Instruction Manual Languages: Dutch, English, French, German, Spanish
  • Maximum Fill: 2.25 l
  • Maximum Size of Printed Circuit Boards (L x B): up to 200 x 250 mm
  • Average Etching Time: 4 m
  • Electrical Connections
  • Mains Plug Type: Europlug
  • Power Supply
  • Input Voltage Rating VAC: 230 V
  • Input Frequency Rating: 50 Hz
  • Power Consumption: 300 W
  • Included
  • Sets Contents: heating element and pump with connection cables and 2-pole euro plugs
  • Product Basic Info
  • Colour: Transparent
  • Additional Colour: Black
  • Height: 36 cm
  • Depth: 4 cm
  • Width: 28 cm
  • Weight: 1150 g
  • Material: Acrylonitrile Styrene (AS)


  • EAN: 5410329375843
