IP RECORDER - HD - 4 CHANNELS - EAGLE EYES - ETS - SWITCH POE - NAS - 1.3 MP

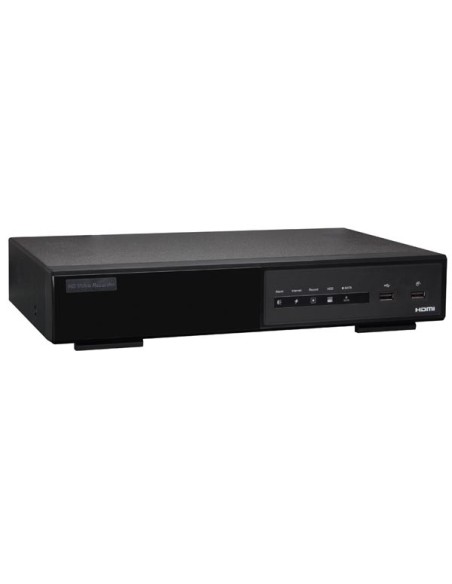

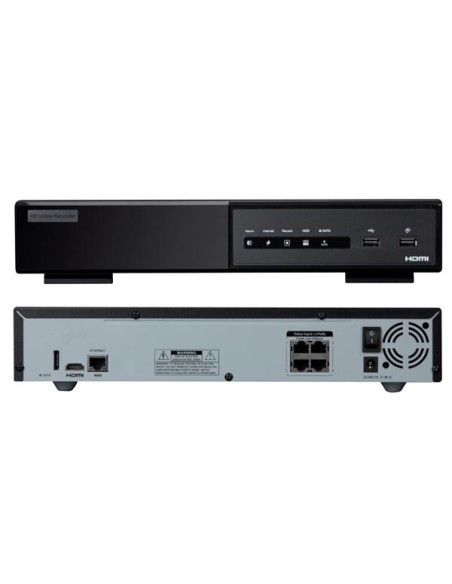

This high definition Network Video Recorder (NVR) combined with Megapixel IP cameras provides a high-resolution IP-based security video system. This system is ONVIF certified: it is compatible with all major professional IP security products that are [link url=http://www.onvif.org/]ONVIF[/link] certified. The system has an easy plug-and-play configuration with [b]4 built-in Power over Ethernet (PoE) ports[/b]. Just connect each camera ([product name=CAMIP11]CAMIP11[/product], [product name=CAMIP12]CAMIP12[/product], [product name=CAMIP16]CAMIP16[/product], [product name=CAMIP17]CAMIP17[/product], [product name=CAMIP18]CAMIP18[/product], [product name=CAMIP19]CAMIP19[/product] or [product name=CAMIP20]CAMIP20[/product]) with an Ethernet cable to the NVR. The NVR automatically detects each camera. This solution eliminates the need of power adapters and difficult network setup. The Event Trigger System ([b]ETS[/b]) function automatically adjusts the video resolution to optimize the recording efficiency. The HDMI TV video output supports 1080P image quality. Advanced mobile surveillance via [b]free EagleEyes[/b] mobile phone software [b]Easier installation than analog CCTV[/b] [youtube]lsTBgzFV4yg[/youtube]

Specification(s):

• high definition recording
• recording throughput: 4 channels
• 1280 x 1024 pixels: 120 IPS, 32 Mbps
• camera power supply & video transmission over Ethernet cable (built-in [b]PoE[/b])
• mobile surveillance via free EagleEyes software on iPhone, iPad, and Android
• mobile phone connection via GPRS, 3G data or Wi-Fi
• GUI (Graphical User Interface) display and USB mouse
• high compatibility and offsite backup:
• compatible with all major IP cameras that are [link url=http://www.onvif.org/]ONVIF[/link] certified
• works with free Central Management System (CMS) software for offsite backup
• local and remote control completely independent
• HDMI video output resolution up to 1080p
• [b]automatic integrated Dynamic Domain Name Service (DDNS)[/b]: free service
• optional monitor: [product name=MONSCA9]MONSCA9[/product]
• adapter: [product name=PAC916T]PAC916T[/product]
• HDMI cable: PAC400Tx series and PAC400Gx series
• optional hard disk: [product name=HD1TB/S]HD1TB/S[/product], [product name=HD2TB/S]HD2TB/S[/product] & [product name=HD3TB/S]HD3TB/S[/product]

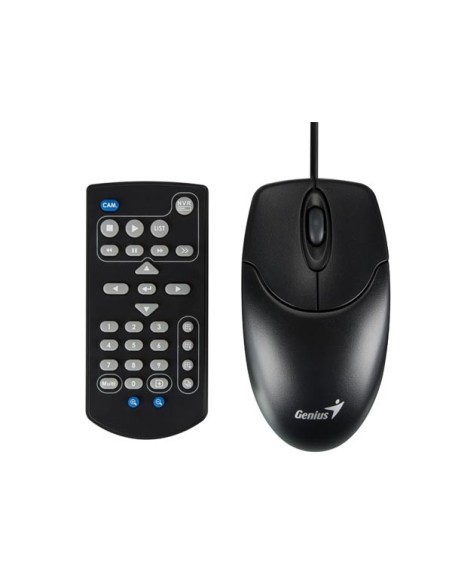

• USB mouse: incl.
• IR remote control: incl.
• IP cameras:
• suitable: [product name=CAMIP12N]CAMIP12N[/product], [product name=CAMIP16]CAMIP16[/product], [product name=CAMIP17]CAMIP17[/product], [product name=CAMIP18]CAMIP18[/product], [product name=CAMIP19]CAMIP19[/product], [product name=CAMIP20]CAMIP20[/product]
• (also compatible with): [product name=CAMIP9]CAMIP9[/product], [product name=CAMIP13]CAMIP13[/product], [product name=CAMIP14N]CAMIP14N[/product] & [link url=http://www.onvif.org/]ONVIF cameras[/link]
• [b]Note[/b]: this product requires a minimum of network installation knowledge

Feature(s):

• video compression: H.264 / MPEG4 / MJPEG
• video input: 4 LAN ports with PoE
• video output: HDMI output 1920 x 1080 pixels
• recording mode: manual / timer / motion / alarm
• multiplex operation: live display, record, playback, backup and network
• audio I/O: input via IP camera / no output
• motion detection area: 20 x 15 grid per camera
• motion detection sensitivity: -
• pre-alarm recording: yes
• backup device: USB 2.0 backup and network remote backup
• hard disk storage:
• built-in SATA type: supports 1 x HDD, supported HDD capacity over 3 TB (HDD not incl.)
• external eSata: external hard disk or disk array (Linux system support)
• web interface:
• supports free CMS software (Windows & Mac OS)
• all major internet browsers via Java, QuickTime and VLC plug-in (Internet Explorer, Firefox, Safari, Google Chrome)
• mobile surveillance: EagleEyes software
• smart phones: iPad, iPod touch, iPhone, Android phone & tablet, BlackBerry, Nokia Symbian and Windows Mobile
• computer:
• CMS (Central Management System): remote surveillance to monitor up to 20 different IP addresses (Windows & Mac OS)
• web browser: Internet Explorer, Firefox, Google Chrome and Safari via Java, QuickTime or VLC plug-in
• remote alarm notification: SMS message, e-mail and image uploading to FTP sites
• network connection: supports TCP/IP, PPPoE, DHCP and DDNS function
• power source: 48 Vdc 1.25 A (incl.)
• power consumption: < 60 W
• operating temperature: 10 °C - 40 °C
• system recovery: system auto recovery after power reconnected
• dimensions: 345 x 59 x 223 mm

• EAN: 5410329567781
