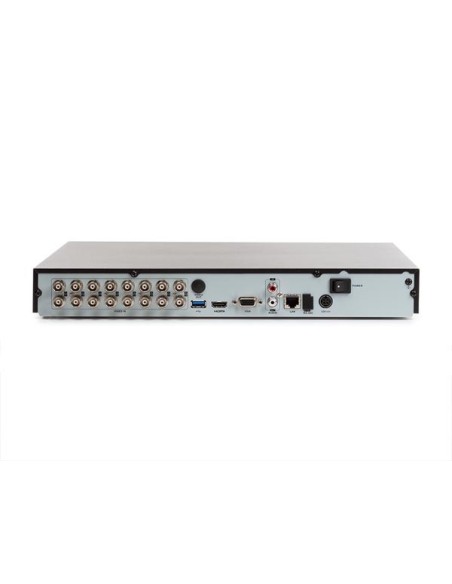

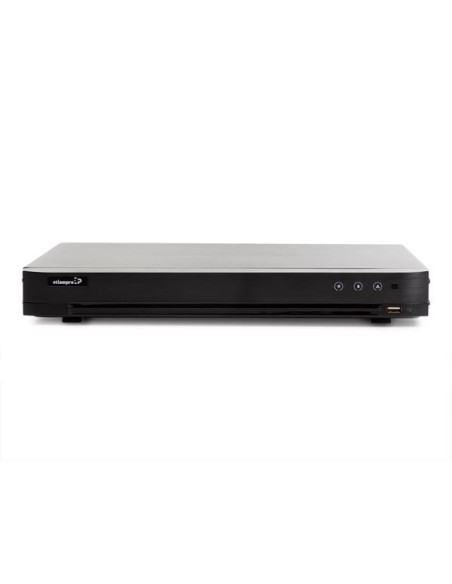

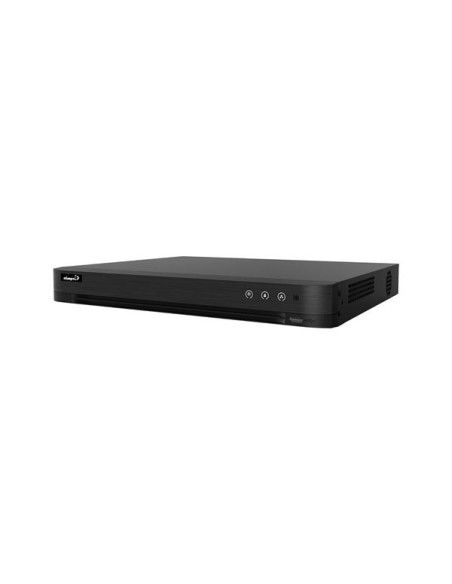

HD CCTV REAL TIME HYBRID RECORDER - 16 CHANNELS

This 16-channel DVR accepts the following high definition technologies, TVI, AHD, HD-CVI & analog. The DVR features H.265+ compression, which improves encoding efficiency, giving you a greater recording length from your hard drive! This recorder supports P2P cloud technology - simply scan the QR code through your mobile or tablet device and set up your system for easy mobile viewing through the Guarding Vision app! This DVR accepts 16 x high definition cameras but will also accept up to 8 x 6 megapixel IP cameras.

Specification(s):

• H.265 Pro+ / H.265 Pro / H.265 video compression
• HDTVI / AHD / CVI / CVBS / IP video input
• audio via coaxial cable
• up to 24 channel IP camera inputs (up to 6 MP)
• max. 800 m for 1080p and 1200 m for 720p HDTVI signal
• up to 10 TB capacity per HDD
• compression and recording:
• H.265 Pro+ improves encoding efficiency and reduces data storage cost
• full channel recording at up to 4 MP lite resolution
• storage and playback:
• smart search for efficient playback
• supports cloud storage (Dropbox - Google Drive - Microsoft OneDrive)
• network & ethernet access:
• max. 8 / 16 / 32 Mbps incoming bandwidth, 72 / 96 / 128 Mbps total bandwidth
• Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]
• iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]
• Windows software: [link url=https://www.velleman.eu/support/downloads/?code=EDVR204]Guarding Vision[/link]
• iOS software: [link url=https://www.velleman.eu/support/downloads/?code=EDVR204]Guarding Vision[/link]

Feature(s):

• recording:
• video compression: H. 265 Pro+ / H. 265 Pro / H. 265 / H. 264+ / H. 264
• encoding resolution: when 1080p Lite mode not enabled: 4MP lite/3; MP / 1080p /720p / VGA / WD1 / 4CIF / CIF when 1080p Lite mode enabled: 1080p lite / 720p / VGA / WD1 / 4CIF / CIF
• When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@
• video bit rate: 32 Kbps - 6 Mbps
• dual stream: yes
• stream type: video / video & audio
• audio compression: G.711u
• audio bit rate: 64 Kbps
• frame rate:
• sub-stream: WD1/4CIF/2CIF@12 fps; CIF/QVGA/QCIF@25 fps (P)/30 fps (N)
• video and audio:
• IP video input: 8-ch (up to 24-ch); up to 6 MP resolution; supports H. 265+ / H. 265 / H. 264+ / H. 264 IP cameras
• analog video input: 16-ch; BNC interface (1.0 Vp-p, 75 O), supports coaxitron connection
• HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30; The 3 MP signal input is only available for channel 1/2/3/4
• AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS input: PAL / NTSC
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• audio input: 1-ch, RCA (2.0 Vp-p, 1 KO); 16-ch via coaxial cable
• audio output: 1-ch, RCA (linear, 1 KO)
• two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using audio input)
• synchronous playback: 16-ch
• network:
• remote connection: 128
• network protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• network interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• auxiliary interface:
• SATA interface: 1
• capacity: up to 10 TB for each disk
• USB interface: real panel: 2 x USB 2.0
• alarm in/out: N/A
• general:
• power supply: 12 VDC 1.9 A
• consumption (without HDD): 20 W
• working temperature: -10 °C - +50 °C (+14 °F - +131 °F)
• working humidity: 10 % - 90 %
• dimensions: 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• weight (without HDD): 1.2 kg

• EAN: 5410329728724
