HAA304
Available
€5.95
Tax included

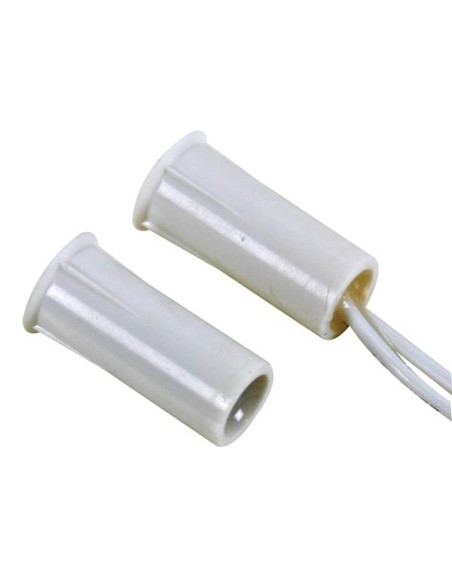

MAGNETIC SWITCH - 0.1 A @ 30 VDC - NC - LEAD WIRES


Specification(s):
  • recessed mount
  • Oki reed switch
  • install into doors/doorframes, windows/window frames...
  • can be used for metal doors (depending on the installation, application, and size of the metal door)
Feature(s):
  • colour: white
  • contact: closed loop, normal closed
  • gap width: 15mm
  • wire length: ±25cm
  • mount: flush mount Ø9mm (1/3"), press fit
  • contact rating: 0.1 A @ 30 VDC
  • lifetime (resistive loads): 1.000.000 (6VDC,10mA)
  • operating temperature: -10~60°C
  • weight: ±20g


  • EAN: 5410329431839
