HAA28
Available
€5.95
Tax included
MINI REED SWITCH


Specification(s):
  • housing: grey ABS
  • miniature magnetic switch NC (when activated by magnet)
  • screw mounting
Feature(s):
  • contact: NC
  • switching voltage (max): 1-50 V AC/DC
  • switching current (max.): 100 mA
  • contact capacity (max.): 5 W
  • initial contact: 0.2 ohm max.
  • carry current (max.): 100 mA
  • breakdown voltage: 150 VDC
  • insulation resistance: 100M ohm min.
  • switch cycle: 5 x 10 (7) @ 12 VDC, 50 mA
  • with leads (on switch): 300 mm
  • operating gap: max. 23 mm

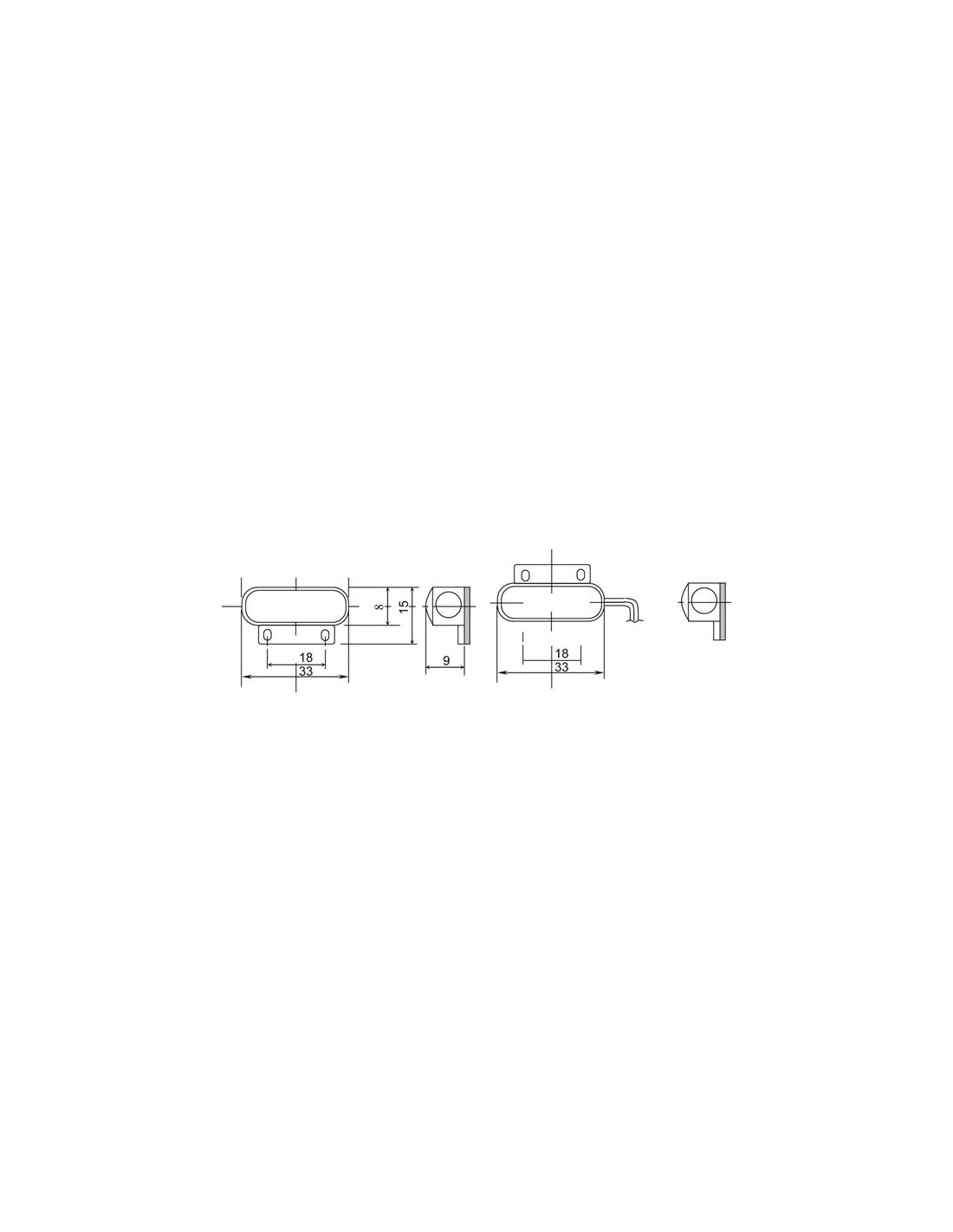

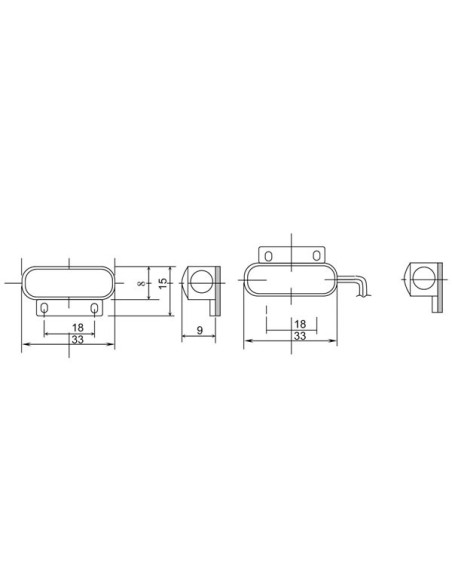

  • dimensions: 34 x 15 x 8 mm


  • EAN: 5410329233358
