REED ALARM SWITCH
REED ALARM SWITCH
REED ALARM SWITCH
REED ALARM SWITCH

REED ALARM SWITCH

HAA27
Available
€7.96
Tax included
REED ALARM SWITCH


Specification(s):
  • quick response, light weight
  • stable switching
  • long lifetime (resistive loads): 1 000 000 connections @ 12 VDC, 100 mA
Feature(s):
  • standard magnetic switch: NO & NC
  • housing: white ABS
  • mounting with screws or double-sided tape
  • contact rating: max 30 VDC 0.2 A
  • contact capacity: 3 VA
  • carry current: 0.5 A
  • insulation resistance (min.): 1000 Mohm
  • operating gap: 15 mm max.

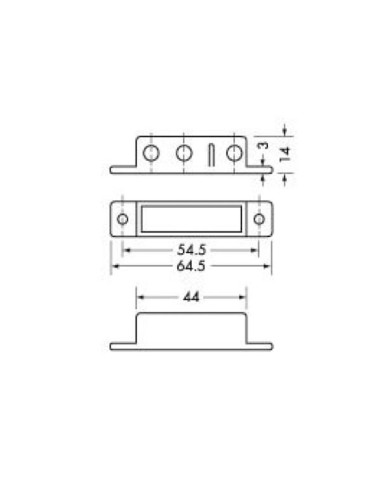

  • dimensions: 64 x 15 x 13.8 mm
  • temperature range: -20 to 65 °C


  • EAN: 5410329233341
