ARDUINO® UNO SMD REV.3

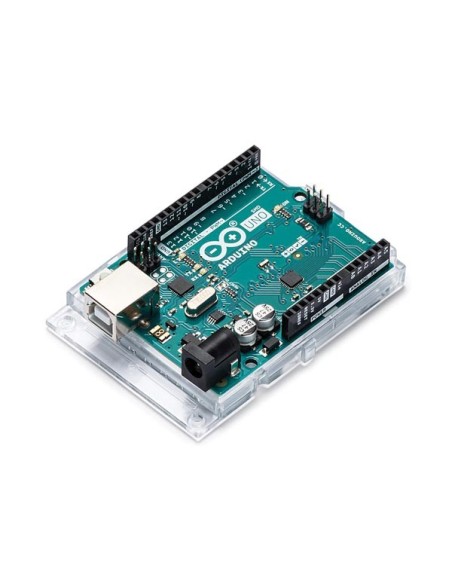

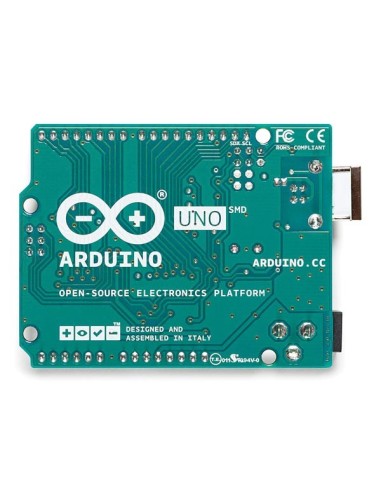

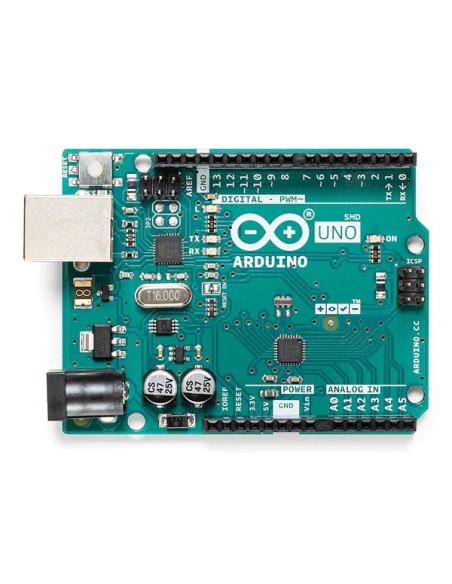

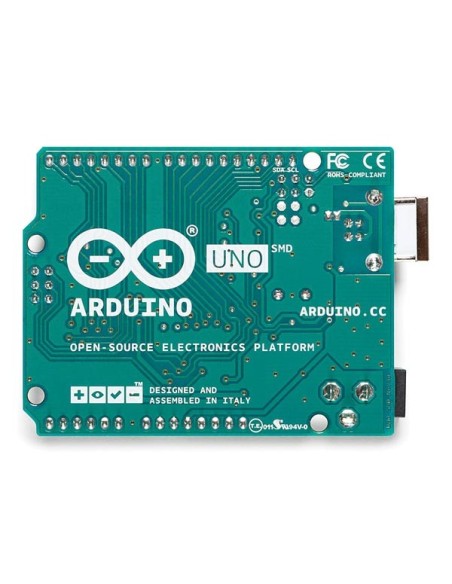

The Arduino Uno is a microcontroller board based on the ATmega328. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U programmed as a USB-to-serial converter.

Specification(s):
  • digital I/O pins: 14 (of which 6 provide PWM output)
  • analogue input pins: 6
  • contains: 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button
Feature(s):
  • Technical data
  • Microcontroller: ATmega328P
  • SRAM: 2 kB
  • PWM output pins: 6
  • PWM digital i/o pins: 6
  • Flash memory: 32 kB
  • Flash memory used by bootloader: 0.5 kB
  • Maximum input voltage rating ( recommended ): 12 V
  • Minimum input voltage rating ( recommended ): 7 V
  • EEPROM: 1 kB
  • DC current per i/o pins: 20 mA
  • Built-in LED's: 13
  • Clock speed: 16 MHz
  • DC current for 3.3 volt pins: 50 mA
  • Analog input pins: 6
  • Operating voltage: 5 V
  • Connections
  • Digital I/O pins: 14
  • Power supply
  • Input voltage rating: 6-20 V
  • Product basic info
  • Colour: Green
  • Additional colour: Black
  • Depth: 53.4 mm
  • Weight: 25 g
  • Width: 68.6 mm
  • Material: Epoxy


  • EAN: 7630049200074
