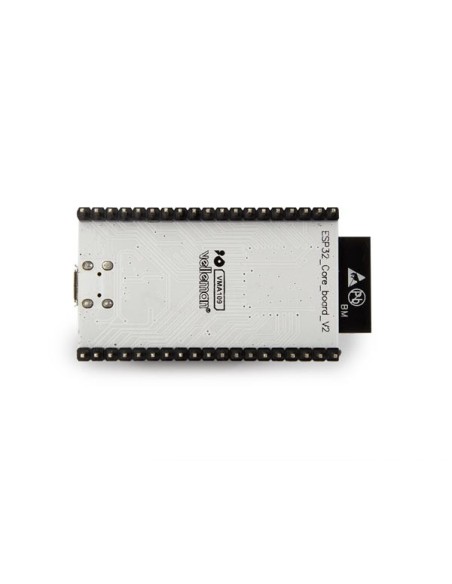

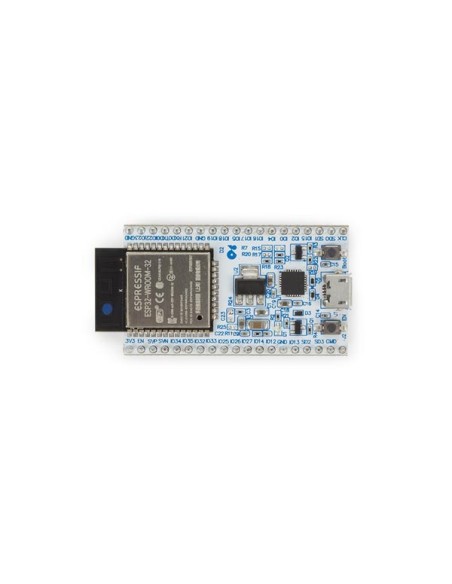

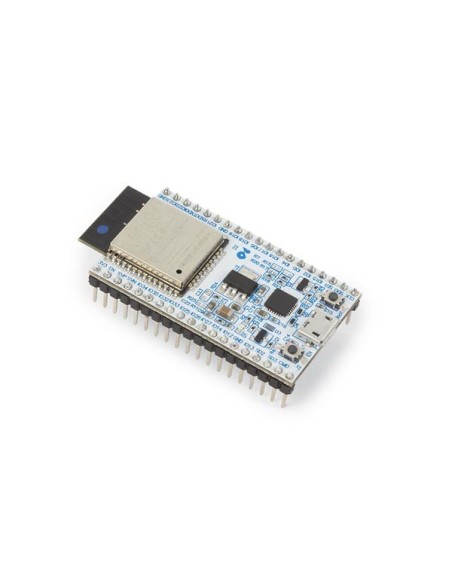

ESP32 DEVELOPMENT BOARD
ESP32 DEVELOPMENT BOARD
ESP32 DEVELOPMENT BOARD
ESP32 DEVELOPMENT BOARD
ESP32 DEVELOPMENT BOARD
ESP32 DEVELOPMENT BOARD

ESP32 DEVELOPMENT BOARD

WPB109
Available
€26.91
Tax included
ESP32 DEVELOPMENT BOARD


Specification(s):
  • onboard WiFi and Bluetooth®
  • 1 x onboard red LED
  • hall effect sensor
  • temperature sensor
  • ultra-low power analog pre-amplifier
  • dedicated reset button
  • 2 × 8-bit DACs
  • SPI, I²S, I²C and UART interfaces
  • the LED PWM, UART, I2C, I2S, and general purpose SPI functions can be configured to any GPIO
  • 12-bit SAR ADC
  • LED PWM (up to 16 channels)
  • deep sleep mode to lower power consumption when preferable
  • onboard boot button
Feature(s):
  • chipset: ESPRESSIF ESP-WROOM-32
  • general purpose IO: GPIO 28
  • processors:
  • CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS
  • ultra low power (ULP) co-processor
  • memory:
  • 520 KB SRAM
  • 448 KB ROM
  • wireless connectivity:
  • WiFi: 802.11 b/g/n
  • Bluetooth®: v4.2 BR/EDR and BLE
  • power management:
  • max. current consumption: 300 mA
  • deep sleep power consumption: 10 µA
  • max. battery input voltage: 6 V
  • max. battery charge current: 450 mA
  • dimensions (W x L x H): 27.9 x 54.4.9 x 19 mm


  • EAN: 5410329729578
