ATmega32u4 LEONARDO DEVELOPMENT BOARD
WPB103
Available
€19.90
Tax included

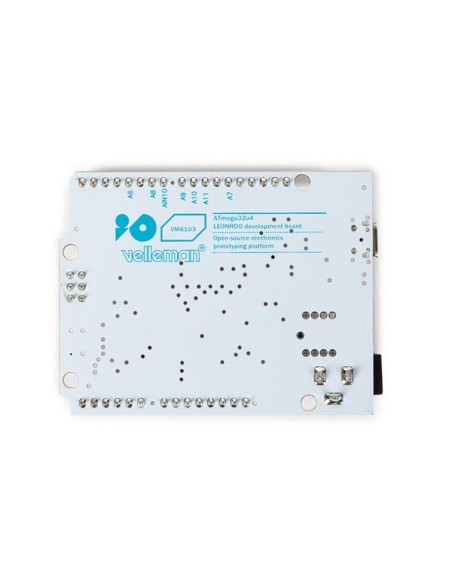

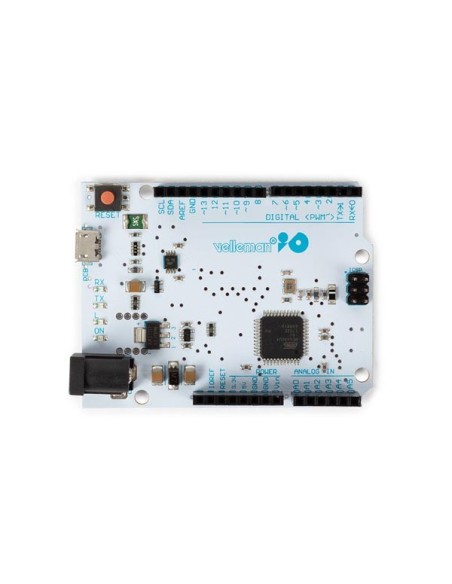

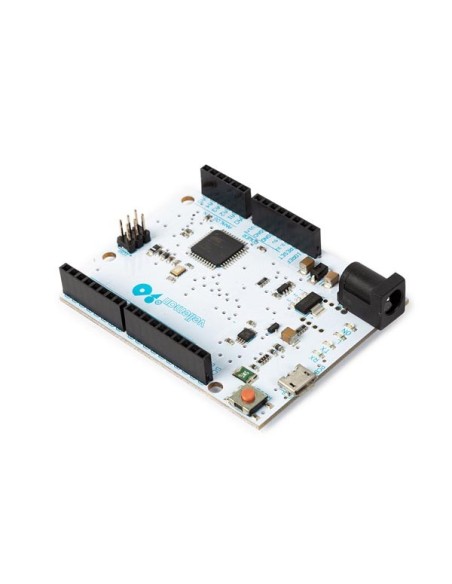

ATmega32u4 LEONARDO DEVELOPMENT BOARD
This board is a microcontroller board based on the ATmega32u4 (Arduino® Compatible leonardo). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Specification(s):
Specification(s):
- 100% compatible with Arduino® LEONARDO
- microcontroller: ATmega32u4
- operating voltage: 5 VDC
- input voltage (recommended): 7-12 VDC
- input voltage (limits): 6-20 VDC
- digital I/O pins: 20
- analogue input pins: 12
- PWM channels: 7
- DC current per I/O pin: 40 mA
- DC current for 3.3 V pin: 50 mA
- flash memory: 32 kB (ATmega32u4) of which 4 kB used by bootloader
- SRAM: 2.5 kB (ATmega32u4)
- EEPROM: 1 kB (ATmega32u4)
- clock speed: 16 MHz
- length: 68.6 mm
- width: 53.3 mm
- weight: 20 g
- EAN: 5410329729554
