ATmega2560 MEGA DEVELOPMENT BOARD
WPB101
Available
€29.91
Tax included

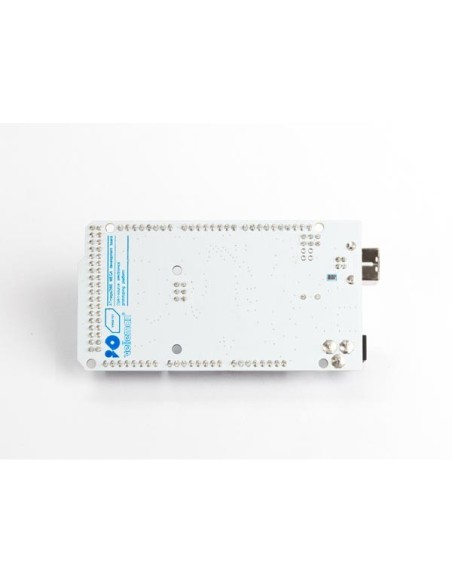

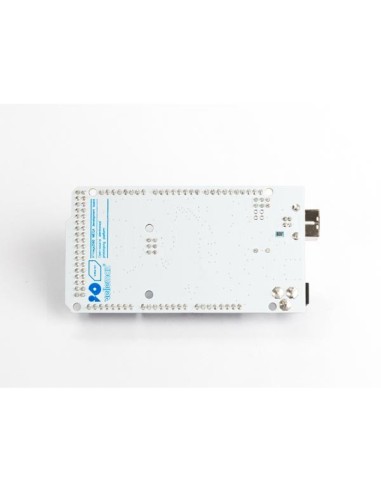

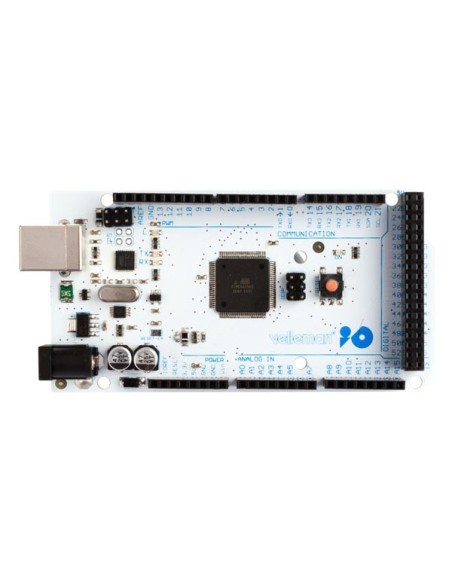

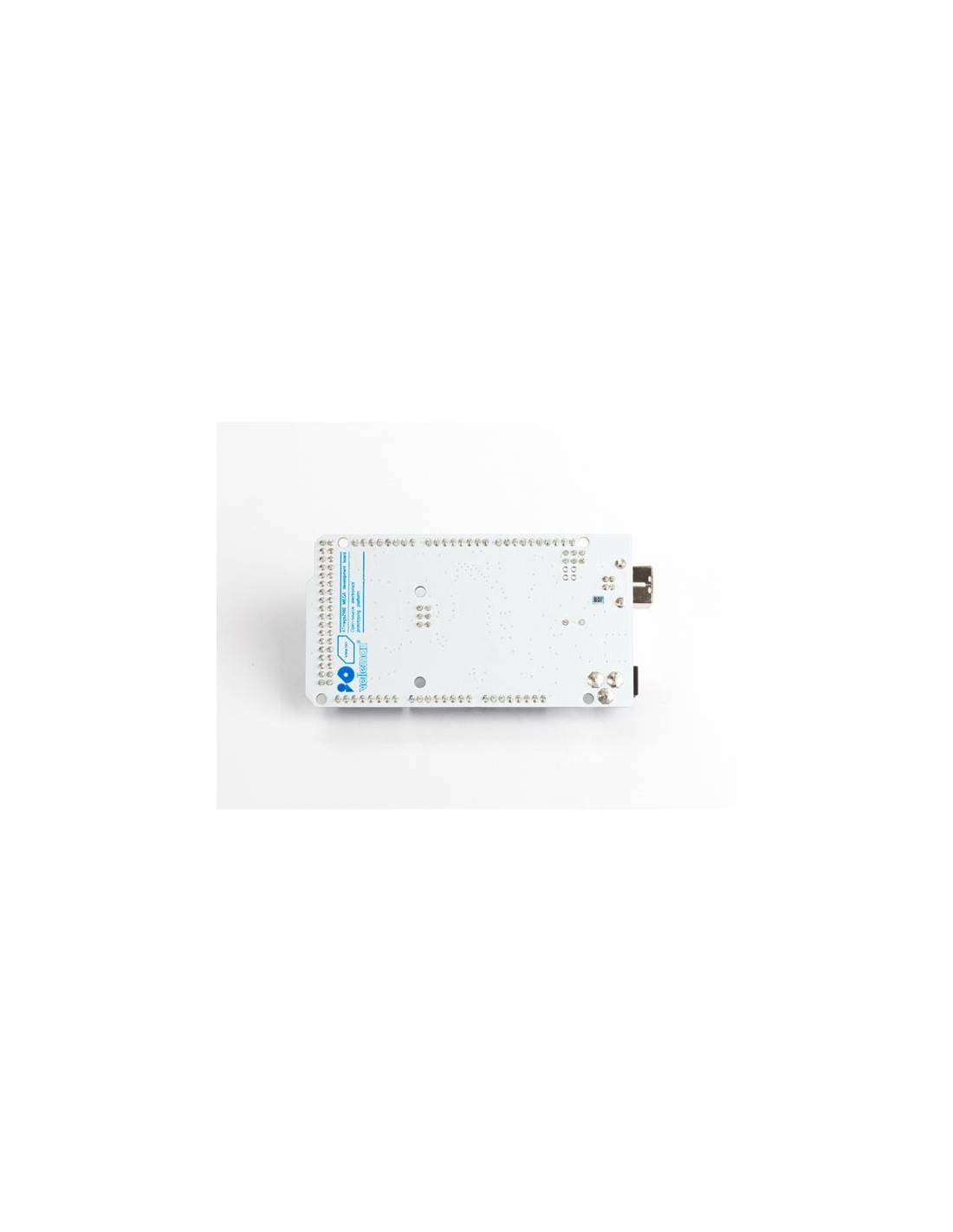

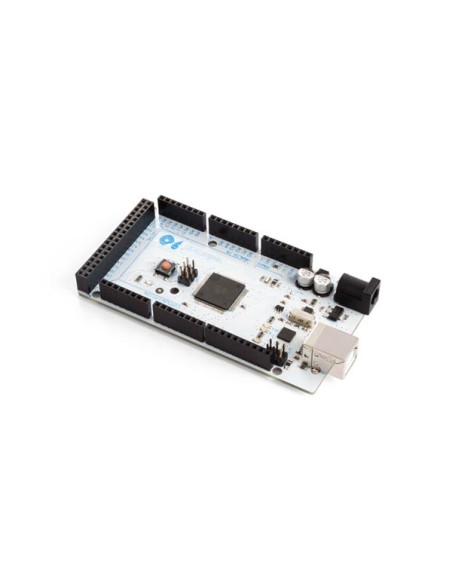

ATmega2560 MEGA DEVELOPMENT BOARD
The ATmega2560 MEGA DEVELOPMENT BOARD (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Specification(s):
Specification(s):
- 100% compatible with Arduino® MEGA2560
- microcontroller: ATmega2560
- operating voltage: 5 VDC
- input voltage (recommended): 7-12 VDC
- input voltage (limits): 6-20 VDC
- digital I/O pins: 54 (of which 15 provide PWM output)
- analogue input pins: 16
- DC current per I/O pin: 40 mA
- DC current for 3.3 V pin: 50 mA
- flash memory: 256 kB of which 8 kB used by bootloader
- SRAM: 8 kB
- EEPROM: 4 kB
- clock speed: 16 MHz
- length: 112 mm
- width: 55 mm
- weight: 62 g
- EAN: 5410329725174
