Wiha Crimp tool for wire-end sleeves (33844) 220 mm
WH33844
Out-of-Stock
€181.75
Tax included

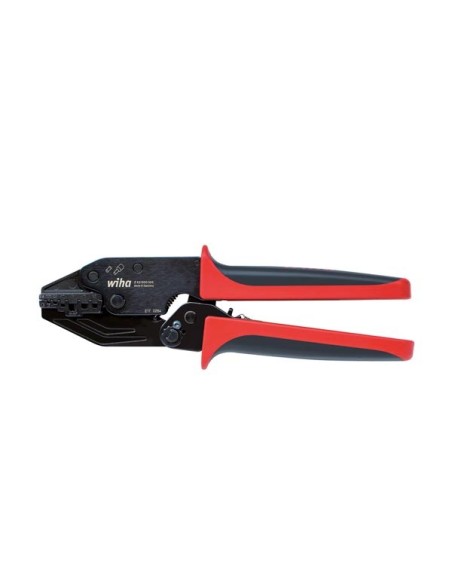

Wiha Crimp tool for wire-end sleeves (33844) 220 mm
Specification(s):
- material: high-tensile special steel; parts subject to extreme loading are specially hardened and tempered
- application: processing of wire-end sleeves with and without isolating collar according to DIN 46228, EN 50027
- design: delockable force lock for ensuring complete crimping process; required crimp pressure is factory set. Ergonomic soft handle with slip protection for comfortable handling.
- head shape: trapezoid crimp, radial travel
- length : 220 mm
- Ø: 0.14 -10 mm²
- AWG: 26-8
- weight : 510 g
- crimp profile design:
- profile 1: 0.14 - 0.75 mm² / AWG 26 - 18
- profile 2: 1.0 - 1.5 mm²/ AWG 18 - 16
- profile 3: 2.5 mm² / AWG 14
- profile 4: 4.0 mm² / AWG 12
- profile 5: 6.0 mm²/ AWG 10
- profile 6: 10.0 mm² / AWG 8
- EAN: 4010995338442
