Founded in 1996, Yingjiao Electrical specialises in switching and linear power supplies, and LED drivers. Yingjiao designs and manufactures entirely in-house. This at a level of quality and attention to detail that is very high.

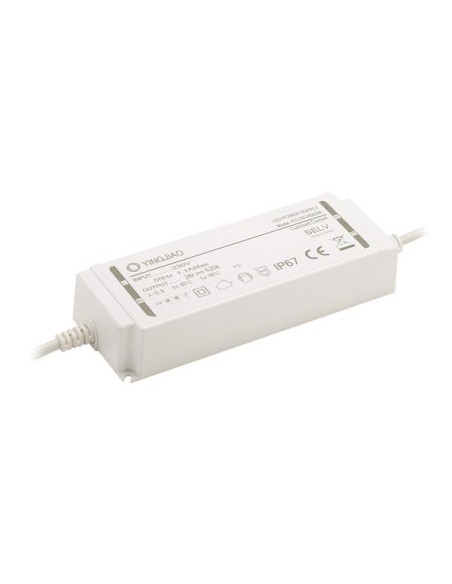

The YCL series waterproof LED power supplies have very high efficiency and low consumption. This is achieved by built-in Power Factor Correction (PFC), making it unique for this type of power supply. Various safety devices are built in against short circuits, overvoltage and overcurrent
Specification(s):
Specification(s):
- High efficiency & low power consumption.
- Protection: short circuit, overcurrent, overvoltage and overtemperature.
- Waterproof design
- 100% full load burn-in test.
- IP-rating: IP67
- EMI Standard: EN55015:2019+A11
- Safety Standard: EN61347-1:2015, EN61347-2-13:2014+A1:2017, UL8750
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 6.25 A
- Output power rating: 150 W
- Protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
- Technical data
- Mounting type: Screw mounting
- Input efficiency: 89 %
- Power supply series: YCL
- Environmental data
- IP rating: IP67
- Usage location: Indoor & outdoor
- Operational properties
- Instruction manual languages: English
- Power supply
- Output voltage rating VDC: 24 V
- Input voltage rating VAC: 100-240 V
- Technology type: Constant voltage mode
- Input current rating at 230 VAC: 0.86 A
- Input frequency: 50-60 Hz
- Product basic info
- Colour: White
- Depth: 68 mm
- Height: 37 mm
- Width: 191 mm
- Weight: 820 g
- Material: ABS
- EAN: 5410329756499
