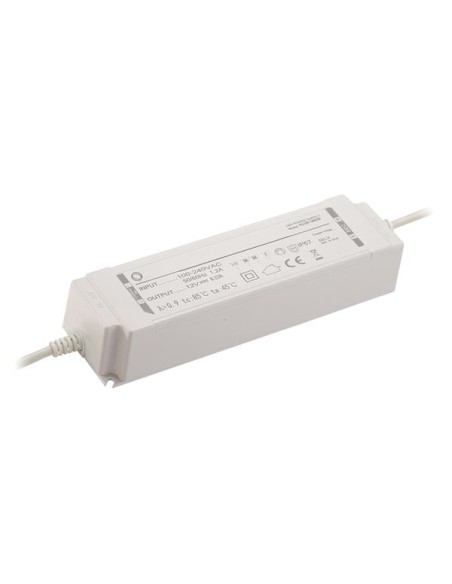

Switching power supply - single output - 100 W - 12 V - 8.3 A

Founded in 1996, Yingjiao Electrical specialises in switching and linear power supplies, and LED drivers. Yingjiao designs and manufactures entirely in-house. This at a level of quality and attention to detail that is very high. The YCL series waterproof LED power supplies have very high efficiency and low consumption. This is achieved by built-in Power Factor Correction (PFC), making it unique for this type of power supply. Various safety devices are built in against short circuits, overvoltage and overcurrent

Specification(s):

• High efficiency & low power consumption.
• Protection: short circuit, overcurrent, overvoltage and overtemperature.
• Waterproof design
• 100% full load burn-in test.
• IP-rating: IP67
• EMI Standard: EN55015:2019+A11
• Safety Standard: EN61347-1:2015, EN61347-2-13:2014+A1:2017, UL8750

Feature(s):

• Physical properties
• Number of outputs: 1
• Housing type: Enclosed
• Electrical data
• Output current rating: 8.33 A
• Output power rating: 100 W
• Protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
• Technical data
• Mounting type: Screw mounting
• Input efficiency: 88 %
• Power supply series: YCL
• Environmental data
• IP rating: IP67
• Usage location: Indoor & outdoor
• Operational properties
• Instruction manual languages: English
• Power supply
• Output voltage rating VDC: 12 V
• Input voltage rating VAC: 100-240 V
• Technology type: Constant voltage mode
• Input current rating at 230 VAC: 0.57 A
• Input frequency: 50-60 Hz
• Product basic info
• Colour: White
• Depth: 52 mm
• Height: 37 mm
• Width: 190 mm
• Weight: 610 g
• Material: ABS

• EAN: 5410329756185
