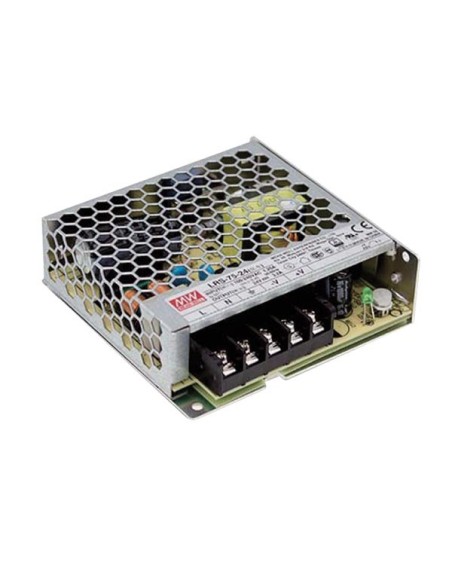

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 75 W - 5 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY
LRS-75-5
Available
€27.95
Tax included
Specification(s):
- universal AC input / full range
- withstands 300 VAC surge input for 5 seconds
- no load power consumption < 0.3 W
- miniature size and 1U low profile
- high operating temperature up to 70°C
- cooling by free air convection
- operating altitude up to 5000 m
- withstands 5G vibration test
- high efficiency, long life and high reliability
- 3 years warranty
- protection against: short circuit / overload / overvoltage
- 100% full load burn-in test
- LED indicator for power ON
- terminal block cover not included
- Physical properties
- Number of outputs: 1
- Housing type: Open
- Electrical data
- Output current rating: 14 A
- Output power rating: 75 W
- Protection: Overload, Overvoltage, Short-circuit
- Technical data
- Mounting type: Screw mounting
- Input efficiency: 86.5 %
- Power supply series: LRS
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operational properties
- Instruction manual languages: English
- Power supply
- Output voltage rating VDC: 5 V
- Input voltage rating VAC: 85-264 V
- Input voltage rating VDC: 120-373 V
- Technology type: Constant voltage mode
- Input current rating at 115 VAC: 1.4 A
- Input current rating at 230 VAC: 0.85 A
- Input frequency: 47-63 Hz
- Product basic info
- Colour: Metal
- Depth: 99 mm
- Height: 30 mm
- Width: 97 mm
- Weight: 250 g
- Material: Metal
- EAN: 8720207841863
