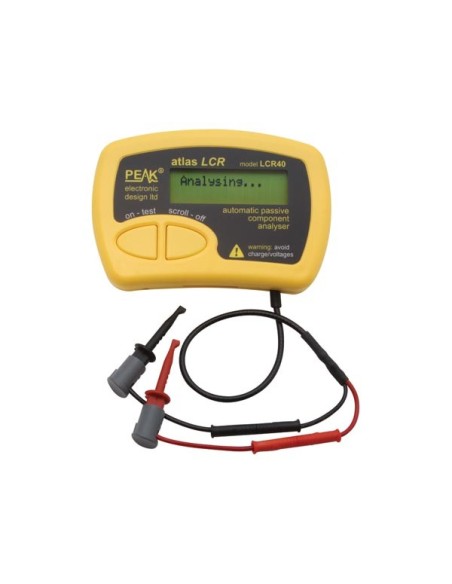

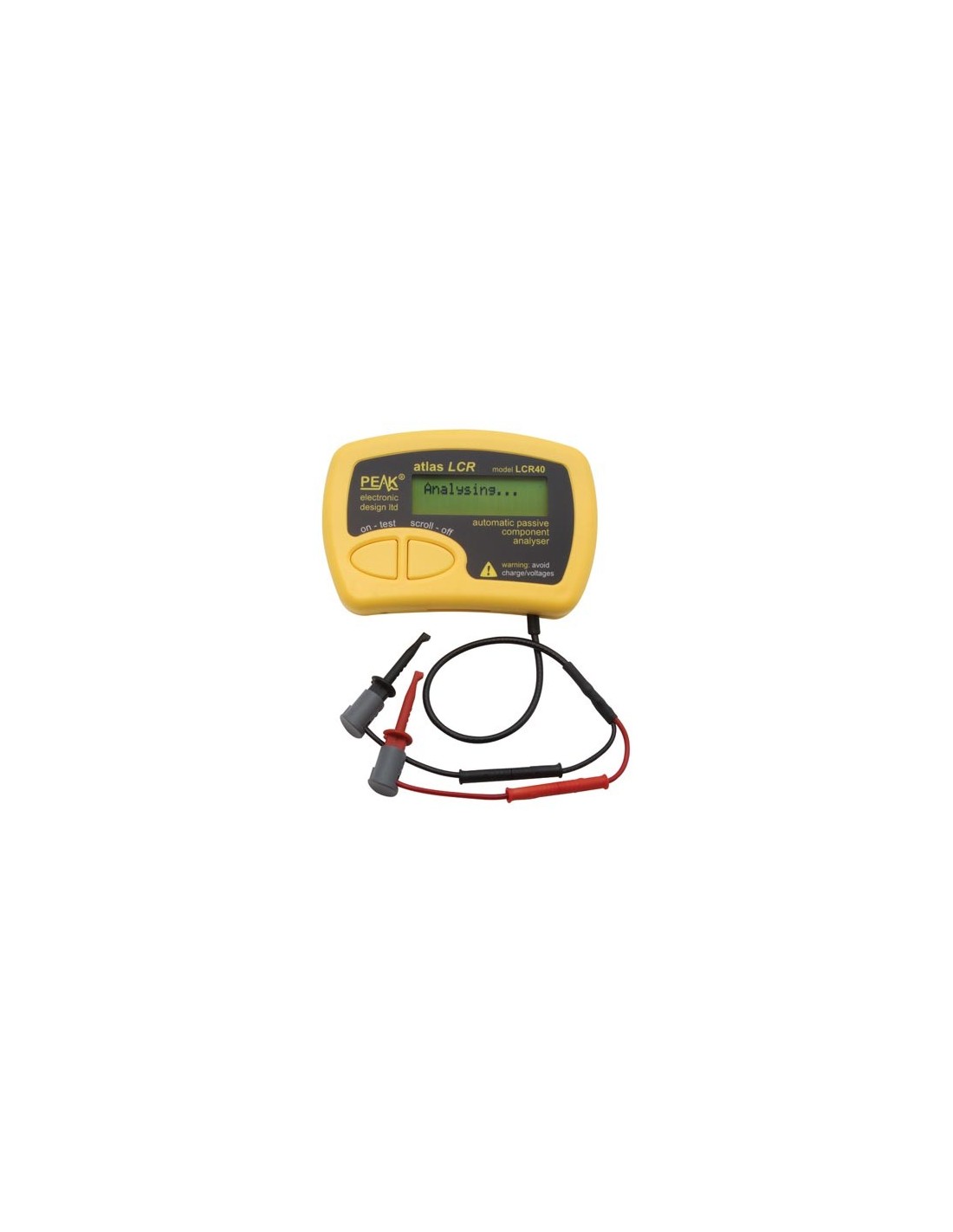

AUTOMATIC PASSIVE COMPONENT ANALYZER
LCR40
Available
€149.91
Tax included
AUTOMATIC PASSIVE COMPONENT ANALYZER
Specification(s):
- automatic component identification
- automatic test frequency selection (DC, 1kHz, 15kHz and 200kHz)
- delayed or instant analysis (for hands free operation)
- auto power-off
- probe and test lead compensation
- interchangeable probe sets
- automatic ranging and scaling
- 1% basic accuracy for resistors
- 1.5% basic accuracy for inductors and capacitors
- Specification Summary at 20°C (68°F) unless otherwise specified
- resistance:
- range: 1Ohm ~ 2MOhm
- resolution: 0.3Ohm
- accuracy: ±1.0%±1.2Ohm
- capacitance:
- range: 0.5pF ~ 10000µF
- resolution: 0.2pF
- accuracy: ±1.5%±1.0pF
- inductance:
- range: 1µH ~ 10H
- resolution: 0.4µH
- accuracy: ±1.5%±1.6µH
- peak test voltage across O/C: -1.05V ~ +1.05V
- peak test current into short circuit: -3.25mA ~ +3.25mA
- test frequency accuracy: -1.5% ~ +1.5%
- sine purity: -60dB 3rd harmonic
- operating temperature range: 10°C ~ 40°C (50F ~ 104F)
- battery operating voltage: 8.5V ~ 13V
- Weight per product (nett): 0.098kg (3.5oz)
- Dimensions per product : 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
- EAN: 5410329460662
