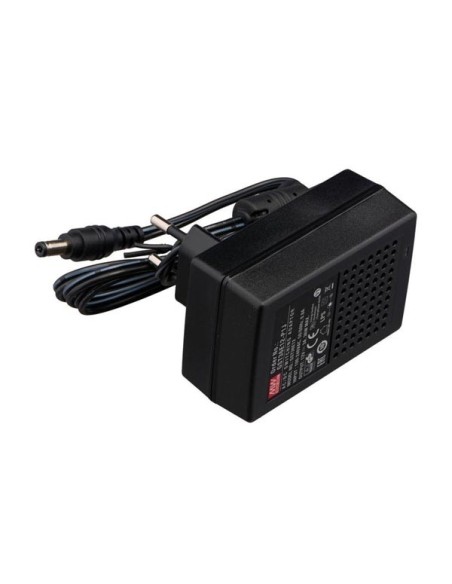

ITE COMPACT SWITCHING POWER SUPPLY - SINGLE OUTPUT - 12 VDC - 3A - 36 W
MWGST36E12-P1J
Available
€19.95
Tax included
ITE COMPACT SWITCHING POWER SUPPLY - SINGLE OUTPUT - 12 VDC - 3A - 36 W
Specification(s):
- universal AC input / full range
- no load power consumption < 0.3 W
- ErP Step 2 compliant
- meets EISA 2007 (Energy Independence and Security Act)
- 2-pole Europlug
- Class II (without earth pin)
- protection against: short circuit / overload / overvoltage
- fully enclosed in plastic case
- approvals: TÜV / CB / CE
- meets LPS requirements
- 2 years warranty
- stabilised output, low ripple & noise
- short-circuit & overload protection
- very high efficiency & low energy consumption
- output:
- output voltage: 12 VDC
- rated current: 3 A
- max. output current: 0 - 3 A
- power: 36 W
- ripple & noise (max.): 100 mVp-p
- voltage tolerance: +/- 3.0 %
- line regulation: +/- 1 %
- load regulation: +/- 3 %
- setup, rise, hold up time:
- 1000 ms, 20 ms, 15 ms / 230 VAC
- 1000 ms, 20 ms, 15 ms / 115 VAC at full load
- input:
- voltage range:
- 90 - 264 VAC
- 135 - 370 VDC
- frequency range: 47 - 63 Hz
- efficiency (typ.): 87.5 %
- AC current (typ.): 0.7 A / 100 VAC
- inrush current (typ.): 70 A / 230 VAC
- leakage current: 0.25 mA / 240 VAC
- protection:
- overload:
- 110 - 150 % rated output power
- protection type: hiccup mode, recovers automatically after fault condition is removed
- overvoltage:
- 110 - 140 % rated output voltage
- protection type: clamping by zener diode
- environment:
- operating temperature: -30 to +70 °C
- operating humidity: 20-90 % RH non-condensing
- storage: -40 to +85 °C, 10 - 95 % RH
- temperature coefficient: +/- 0.03 %/°C (0 - 50 °C)
- vibration: 10 - 500 Hz, 2G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
- safety & EMC:
- safety standards: TÜV EN60950-1 approved
- withstand voltage: input to output: 4242 VDC
- isolation resistance: input to output: 100 Mohm / 500 VDC / 25 °C / 70 % RH
- EMC emission: compliance to EN55032 Class B; EN61000-3-2,3 Class A
- EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11
- others:
- MTBF: min. 692,300 h, MIL-HDBK-217F (25 °C)
- dimensions (L x W x H): 79 x 54 x 33 mm
- weight: 209 g
- plug: ID 2.1 x OD 5.5 mm
- cable length: 1 m
- temperature: -30 °C to +50 °C
- output voltage tolerance: ± 10 %
- EAN: 5410329718589
