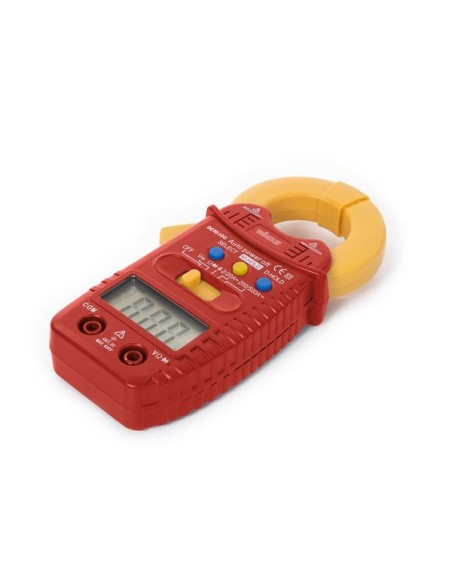

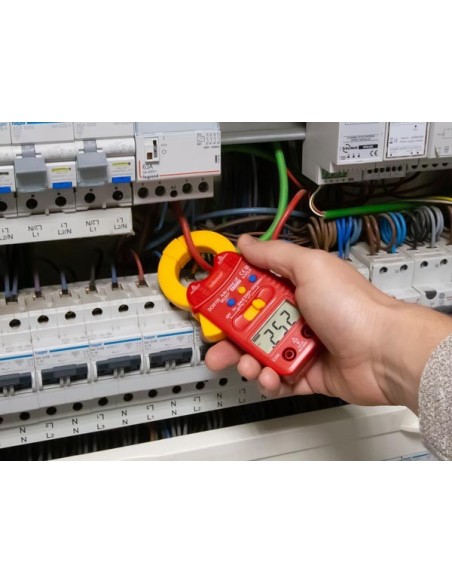

Digital clamp meter - CAT III - 600 VAC - with data-hold function
DCM100
Available
€19.95
Tax included
Digital clamp meter - CAT III - 600 VAC - with data-hold function
Specification(s):
- LCD display with automatic negative polarity indication
- auto range control
- data-hold function
- AC and DC voltage measurements up to max. 600 V
- AC current measurement up to max. 500 A
- max. Ø for conductor: 22 mm
- resistance measurements: max. 20 Mohm
- diode test, continuity test
- safety: indoor use only (overvoltage CAT III 600 V)
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Physical properties
- Display height: 18 mm
- Display width: 39 mm
- Backlight: No
- Maximum digits display: 1999
- Electrical data
- AC current measurements: 2 A, 20 A, 500 A
- AC current:
- 2/20/200/500 A
- basic accuracy:
- ± (4.0 % of rdg + 10 digits) for 2 A range
- ± (2.5 % of rdg + 5 digits) for 20 A ~ 500 A range
- 1200 A for max. 60 seconds
- AC voltage measurements: 2 V, 20 V, 200 V, 600 V
- AC voltage:
- 2/20/200/600 V
- basic accuracy:
- ± (1.5 % of rdg + 3 digits) for 2 V ~ 200 V range
- ± (1.5 % of rdg + 5 digits) for 600 V range
- input impedance: 10 Mohm
- frequency range: 50-60 Hz
- maximum input: 600 V
- DC voltage measurements: 2 V, 20 V, 200 mV, 200 V, 600 V
- DC voltage:
- 0.2/2/20/200/600 V
- basic accuracy:
- ± (0.8 % of rdg + 3 digits) for 0.2 V range
- ± (1.2 % of rdg + 3 digits) for 2 V ~ 600 V range
- input impedance: 10 Mohm
- maximum input: 600 V
- Diode test: Yes
- Resistance:
- 200/2K/20K/200K/2M/20M
- basic accuracy:
- ± (1.0 % of rdg + 2 digits) for 200 ohm range
- ± (1.5 % of rdg + 2 digits) for 2 K ~ 2 M range
- ± (2.0 % of rdg + 3 digits) for 20 M range
- overload protection: 15 s max. 250 V (all ranges)
- True RMS: No
- Continuity test: Yes
- Overload protection: Yes
- Non contact voltage detect (NCV): No
- Maximum AC Current: 500 A
- Technical data
- Pollution degree: 2
- Data-hold function: Yes
- Safety rating: CAT III / 600 V
- Automatic power-off function: Yes
- Safety standard: EN 61010-1
- Set-up options
- Alarm sound type: Buzzer
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Power supply
- Battery required: Yes
- Battery operated: Yes
- Battery: Yes
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Battery composition: Alkaline
- Battery voltage rating: 4.5 V
- Input voltage rating VAC: 0-600 V
- Low-battery indicator: Yes
- Input voltage rating VDC: 0-600 V
- Included
- LED light: No
- Product basic info
- Colour: Red
- Additional colour: Yellow
- Depth: 24.8 mm
- Height: 131.5 mm
- Weight: 135 g
- Width: 61 mm
- Material: ABS
- EAN: 5410329706012
