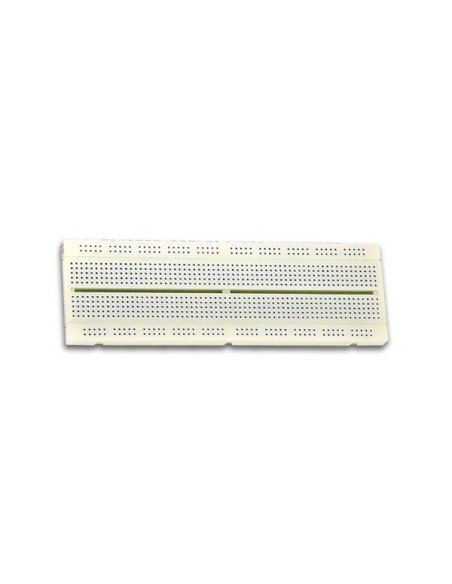

HIGH-Q BREADBOARD - 840 HOLES
SD12N
Available
€16.95
Tax included
HIGH-Q BREADBOARD - 840 HOLES
Specification(s):

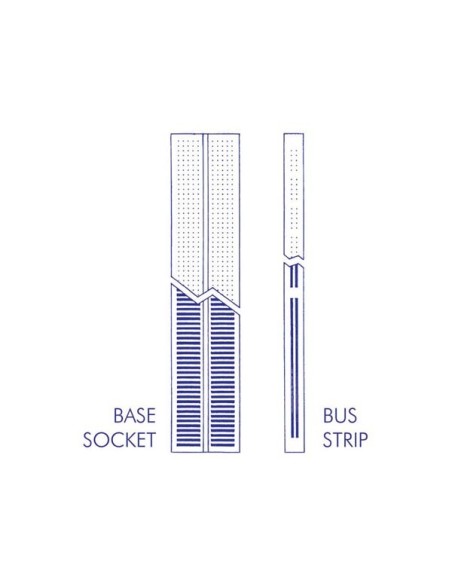

- base socket (see figure): twin columns of 5 x 64 terminals are separated by a 7.62mm centre channel
- bus strip (see figure): 4 buses of 25 connected terminals are arranged in 4 rows
- Physical properties
- Number of pieces: 1
- Depth breadboard: 55 mm
- Number base sockets: 1
- Number binding posts: 0
- Number bus strips: 2
- Number tie points: 840
- Technical data
- 14 pins IC capacity: 9
- Board type: High-Q
- Product basic info
- Colour: Grey
- Additional colour: Green
- Depth: 55 mm
- Weight: 95 g
- Width: 168 mm
- Material: ABS
- EAN: 5410329219857
