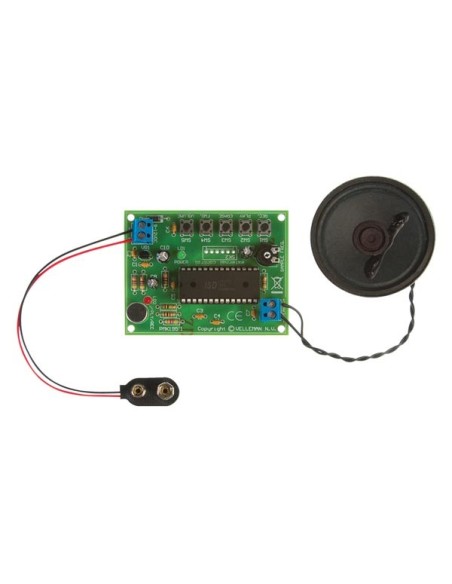

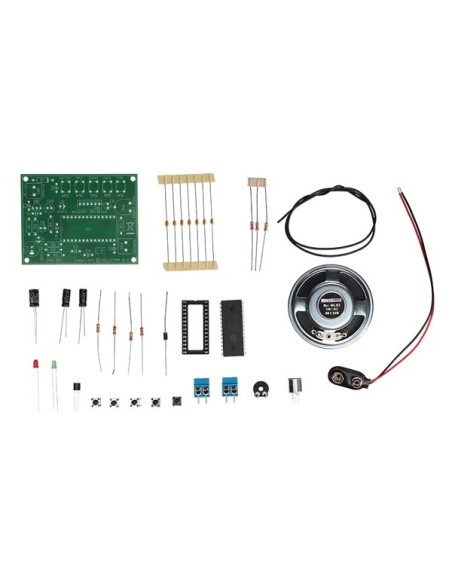

VOICE RECORDING/PLAYBACK MODULE
WSAH195
Out-of-Stock
€24.95
Tax included
VOICE RECORDING/PLAYBACK MODULE
Also available as completely mounted module; controllable with Arduino [product name=WPSH02][/product]
Specification(s):
Specification(s):
- recording time between 30 and 90 s (adjust the sample rate)
- on-board microphone
- speaker Ø 57 mm included
- using the speed adjustment, a "funny voice" can be created
- external open-collector trigger inputs for recording, playback, delete, next, and volume
- Technical data
- Specifications:
- power supply : 9 … 12 VDC or with a 9 V battery (ex. 6LI61)
- power consumption:
- max. 150 mA during playback
- max. 6 mA during standby!
- adjustable sampling rate: 5…12 kHz
- speaker output: 500 mW max., 8 Ohm
- nominal recording time: 60 s
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: none
- Mechanics skill level: 1
- Soldering skill level: 3
- Product basic info
- Colour: Green
- Depth: 60 mm
- Height: 15 mm
- Weight: 82 g
- EAN: 5410329730413
