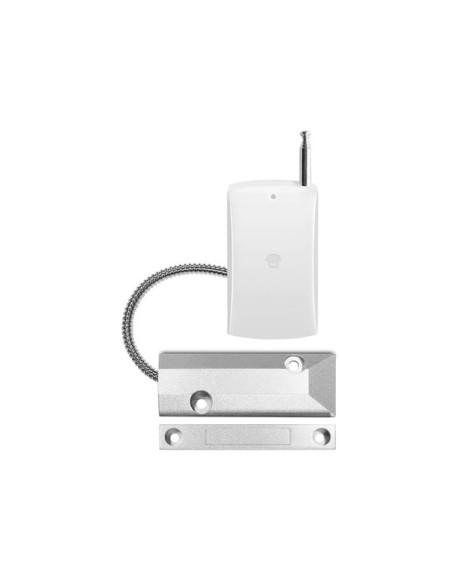

CHUANGO - ROLLER SHUTTER DOOR SENSOR
CG-DWC55
Available
€39.95
Tax included
CHUANGO - ROLLER SHUTTER DOOR SENSOR
The CG-DWC55 roller shutter door sensor is used for rolling gates. When the metal magnet and the metal reed switch are separated more than 2 cm, it will transmit wireless alert signal to the connected control panel immediately. The lifespan of the battery depends on the frequency of opening and closing the door/gate, the normal battery service life is about 12 to 15 months.
Specification(s):
Specification(s):
- easy mounted by 3M sticker
- low battery notification
- tamper protection
- wireless range up to 80 meters (open area)
- 1 year battery life
- contents:
- double-sided tape
- AAA 1.5 V LR03 battery
- installation and operating instructions
- power supply: 3 VDC battery (AAA 1.5 V LR03 x 2)
- standby current: = 23 uA
- alarm current: = 40 mA
- transmitting distance: = 80 m (in open area)
- radio frequency: 315 MHz/ 433.92 MHz
- housing material: ABS & aluminium alloy
- operating conditions:
- operating temperature: -10 °C to +55 °C
- relative humidity: = 80% (non-condensing)
- dimensions (L x W x D):
- metal magnet: 105.5 x 15.5 x 15.5 mm
- metal reed switch: 105.5 x 38 x 9.6 mm
- transmitter: 38 x 105.5 x 9.6 mm
- EAN: 8718868403865
