MEASURING LEAD 4mm 100cm / BLACK (MLN SIL 100/1)
HM4000100
Available
€11.95
Tax included
MEASURING LEAD 4mm 100cm / BLACK (MLN SIL 100/1)

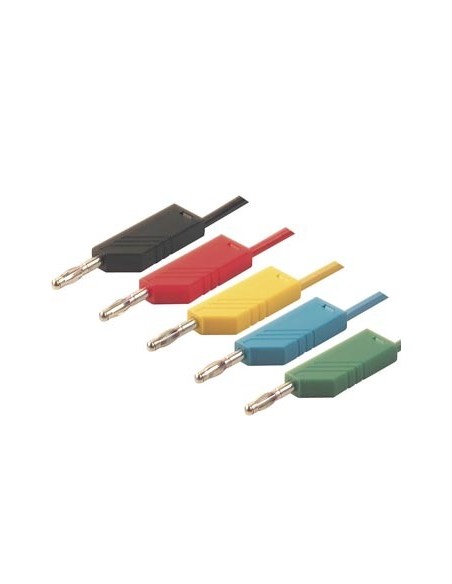

Silicone measuring lead, equipped at either end with a 4mm Ø plug with caged spring and a 4mm Ø socket for tower constructions. Nickel-plated copper beryllium contact spring. Highly flexible stranded lead with double insulation, short-term resistance to soldering iron grip + shatterproof lead.
Specifications
| Physical properties | |
|---|---|
| Cable diameter | 4 mm |
| Cable length | 100 cm |
| Diameter connector 1 | 4 mm |
| Diameter connector 2 | 4 mm |
| Contact protected | |
| Caged spring | |
| Conductor size | 1 mm² |
| Contact spring | |
| Double isolated | |
| Very supple | |
| Electrical data | |
|---|---|
| Current rating | 16 A |
| Volume resistance | 22 milliohm |
| Technical data | |
|---|---|
| Injection moulded | |
| Environmental data | |
|---|---|
| Operating temperature | -15-70 °C |
| Shatterproof | |
| Operational properties | |
|---|---|
| Stackable | |
| Gripproof | |
| Electrical connections | |
|---|---|
| Connection 1 gender | Male |
| Connection 2 gender | Male |
| Plug type | Banana |
| IT connections | |
|---|---|
| Connection type | Lead, Socket |
| Power supply | |
|---|---|
| Voltage rating VDC | 60 V |
| Product basic info | |
|---|---|
| Colour | Black |
| Depth | 7.5 mm |
| Height | 15 mm |
| Width | 58.3 mm |
| Weight | 42 g |
| Material | PA (Polyamide) |
| Additional material | Brass, Nickel-plated copper beryllium, Silicone |
- EAN: 5410329300845
