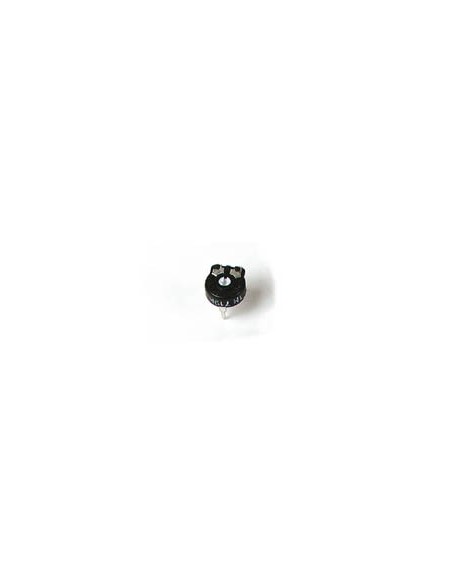

PIHER TRIMMER 470E (SMALL - HOR - FOR SCREWDRIVER)
E470SH
Available
€0.65
Tax included
PIHER TRIMMER 470E (SMALL - HOR - FOR SCREWDRIVER)
Specification(s):
- horizontal mounting
- for screwdriver
- range: 47ohm - 10Mohm (E3 series)
- Physical properties
- Size: Small
- Electrical data
- Maximum resistance: 0.47 kohm
- Tolerance:
- R = 100E ... 1M: ±20%
- R = 1E ... 5M: ±30%
- R = 5E ... 10M: +50% / -30%
- General data
- Product series: E3
- Technical data
- Mounting type: Horizontal
- Nominal power at 40 °C: 0.15 W
- Number of standard lifecycles: 500
- Environmental data
- Operating temperature: -25-70 °C
- Operational properties
- Maximum operating voltage VDC: 200 V
- Electrical rotation angle: 200-240 °
- Mechanical rotation angle: 230-240 °
- Adjustable with: Screwdriver
- Product basic info
- Colour: Black
- Additional colour: Metal
- Height: 10 mm
- Weight: 0.7 g
- Diameter: 10.3 mm
- Material: PVC (polyvinyl chloride)
- EAN: 5410329250188
