MULTI-FUNCTION SMD REWORK STATION 100 W / 600 W
VTSSD4
Available
€899.01
Tax included

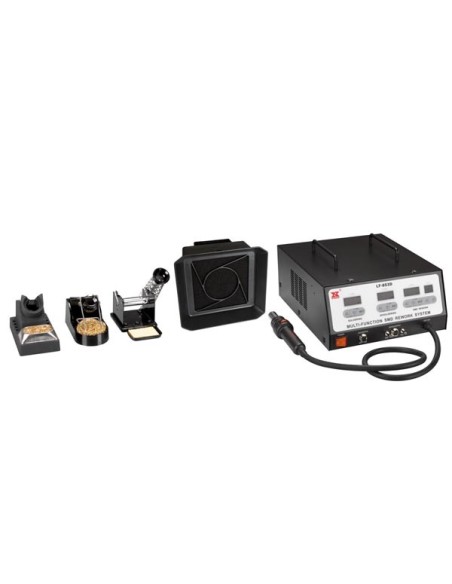

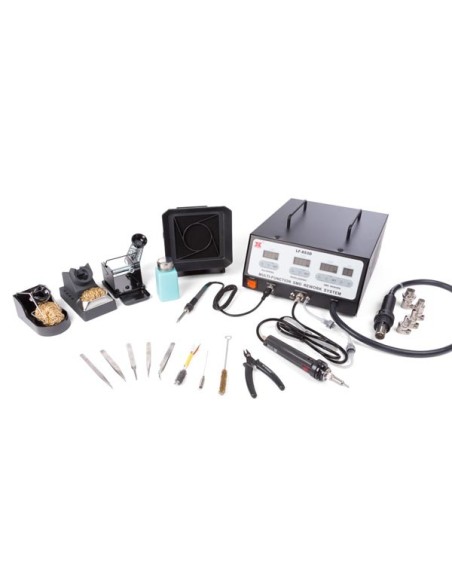

MULTI-FUNCTION SMD REWORK STATION 100 W / 600 W
Specification(s):
- soldering
- isolated power supply: high-quality 32 Vac transformer designed for lead-free soldering/desoldering
- temperature stability: tip temperature accurate to within ± 3 °C (6 °F)
- desoldering
- vacuum switch: suction is controlled by a finger-actuated thyristor circuit conveniently located on the desoldering handle

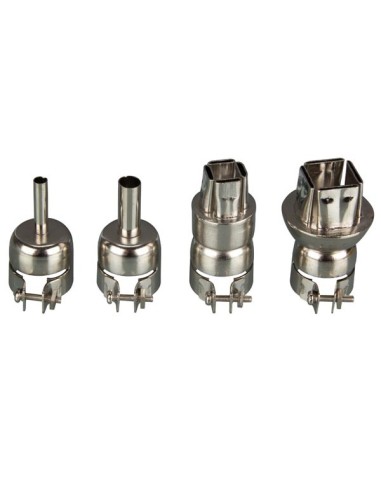

- SMD rework
- hot air function: 600 W heating element
- energy saving mode

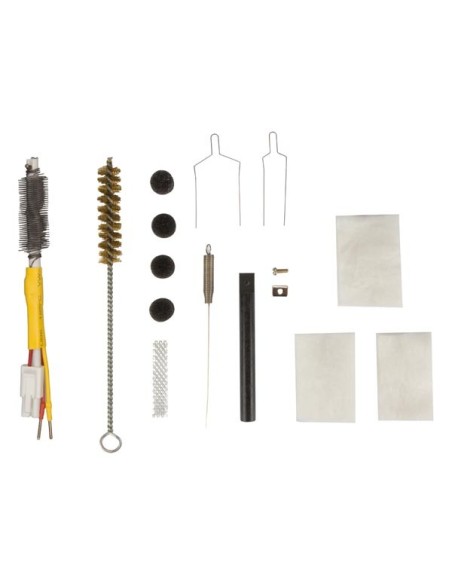

- available options:
- spare desoldering tips:
- 1.2 mm: [product name=BITDEST2]BITDEST2[/product] (standard desoldering tip)
- 1.0 mm: [product name=BITDEST3]BITDEST3[/product]
- 1.5 mm: [product name=BITDEST4]BITDEST4[/product]
- spare filter: [product name=FILT/DES2]FILT/DES2[/product]
- spare soldering bits:
- 0.2 mm: [product name=BITSSC1]BITSSC1[/product]
- 0.5 mm: [product name=BITSSC2]BITSSC2[/product]

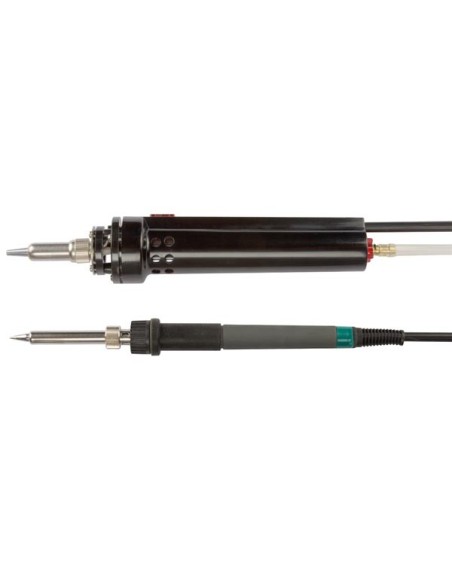

- spare desoldering iron: [product name=VTSSD3/DESOL]VTSSD3/DESOL[/product]
- spare soldering iron: [product name=VTSSC7/SP5]VTSSC7/SP5[/product]
- spare cleaning pin: [product name=VTSSD/SP2]VTSSD/SP2[/product]
- barrel and nut assembly for soldering iron: [product name=VTSSC7/SP4]VTSSC7/SP4[/product]
- barrel and nut assembly for desoldering iron: [product name=VTSSD3/SP2]VTSSD3/SP2[/product]
- desoldering iron heater: [product name=VTSSD3/SP1]VTSSD3/SP1[/product]
- Electrical data
- Maximum power consumption: 900 W
- Power rating desoldering: 100 W
- Power rating soldering: 100 W
- Technical data
- Airflow rate: 1.5-40 l/min
- Set-up options
- Temperature range desoldering: 300-450 °C
- Temperature range SMD rework: 100-480 °C
- Temperature range soldering: 150-480 °C
- Adjustable temperature control: Yes
- Operational properties
- Lead-free soldering/desoldering: Yes
- Soldering/desoldering usage: Desoldering
- Power supply
- Input frequency rating: 50 Hz
- Input voltage rating VAC: 220-240 V
- Voltage rating soldering iron: 32 V
- Voltage rating desoldering: 32 V
- Voltage rating SMD rework: 230 V
- Product basic info
- Colour: Black
- Additional colour: White
- Depth: 36.5 cm
- Height: 30 cm
- Weight: 12 g
- Width: 15 cm
- Material: Aluminium
- EAN: 5410329588366
