WPSH604
Available
€9.96
Tax included
TERMINAL ADAPTER FOR ARDUINO® NANO

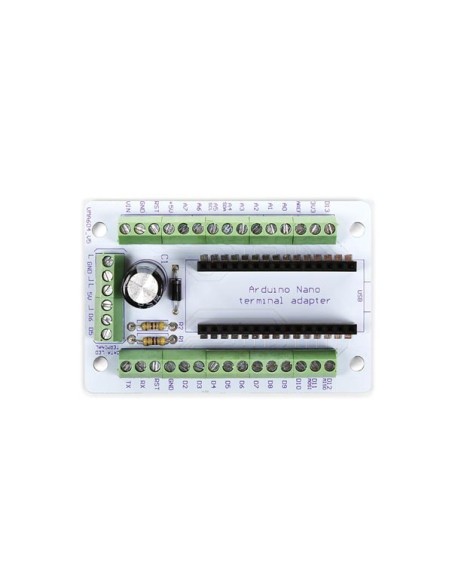

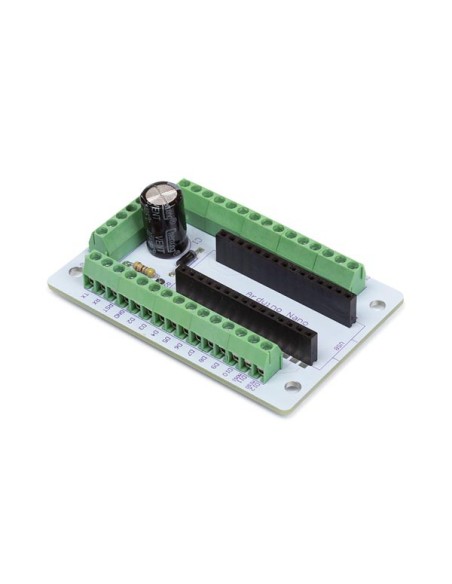

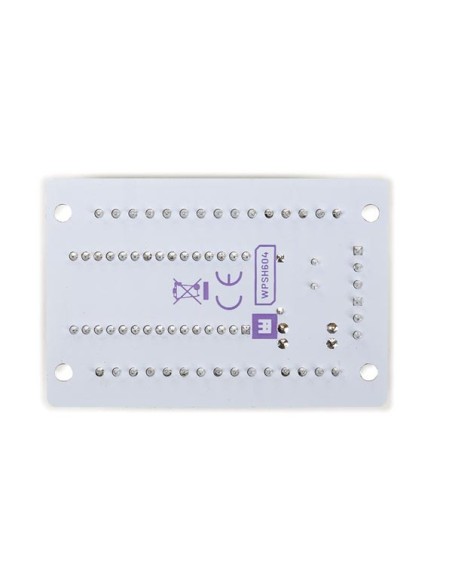

This TERMINAL ADAPTER FOR ARDUINO® NANO is designed to allow easy access of all the interface pins of an ARDUINO® NANO via terminal connectors. We also added additional terminal connectors for the 5V, GND and D5 & D6 pins on the side, making this the ideal module to use as a driver board for digital addressable LED strip projects.

Specification(s):
  • connect a large number of digital lines to an Arduino while maintaining the footprint of the original Nano
  • prototyping without soldering
  • ideal as driver board for digital addressable LED strip projects
Feature(s):
  • input voltage: 7 - 12 VDC
  • operating voltage: 5 V
  • max. current (when using an external power adapter): 750 mA
  • max. current (powered via USB): 400 mA
  • DC current per I/O Pin: 20 mA


  • EAN: 5410329734633
