WPSH04
Out-of-Stock
€37.91
Tax included

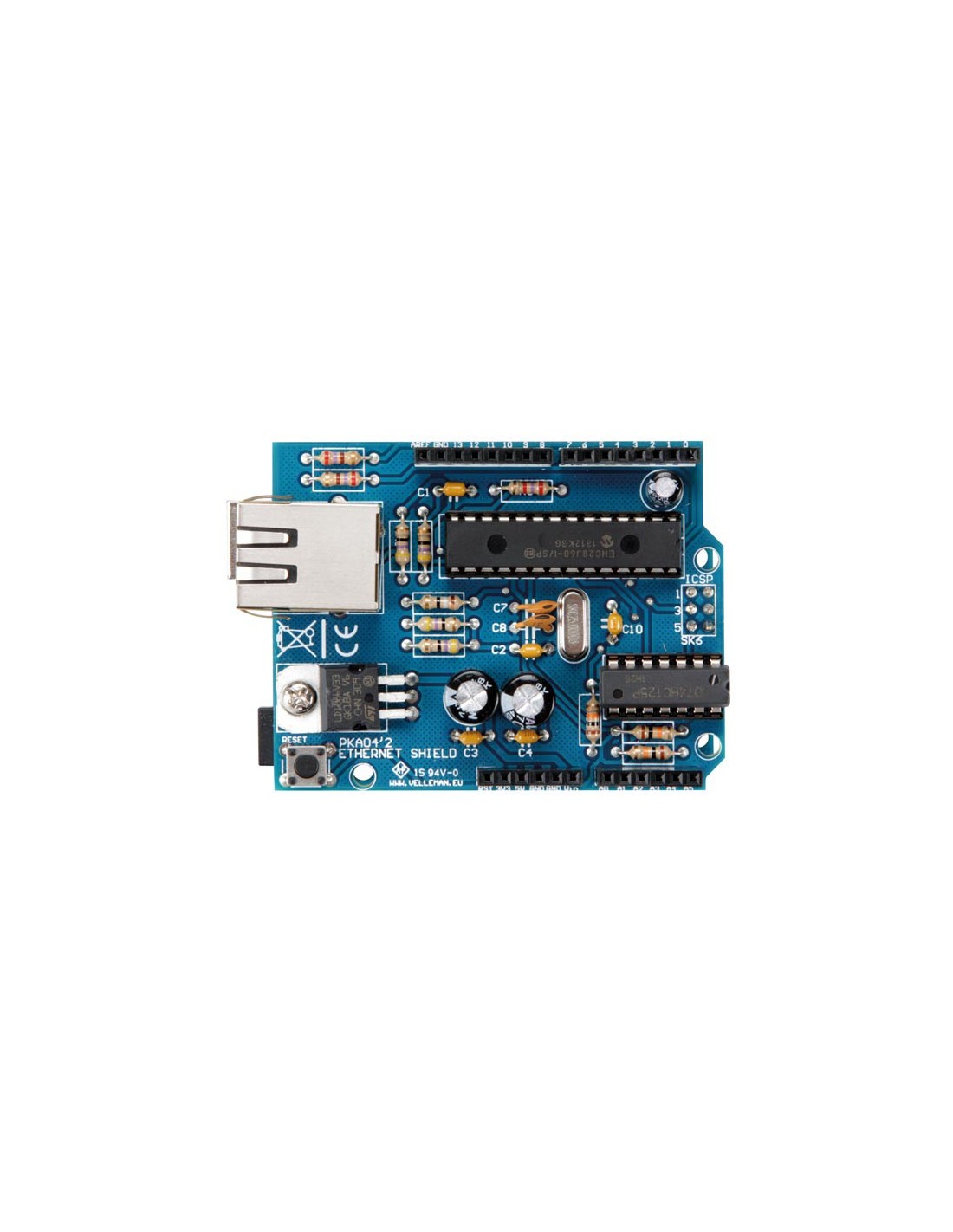

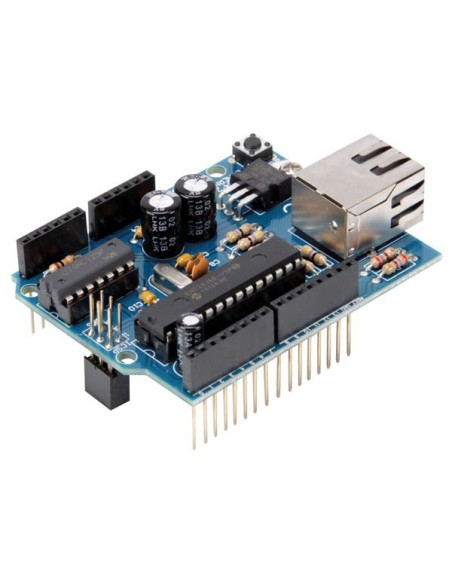

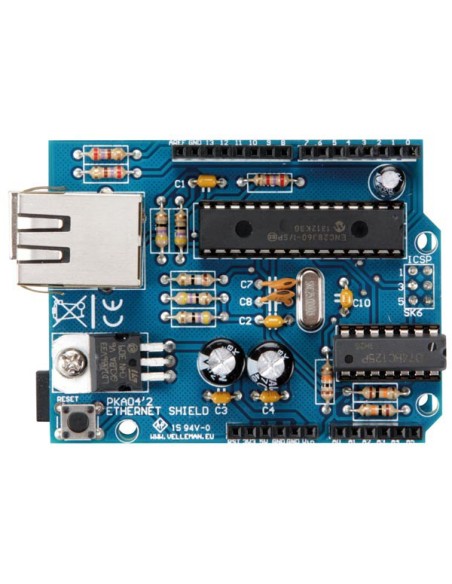

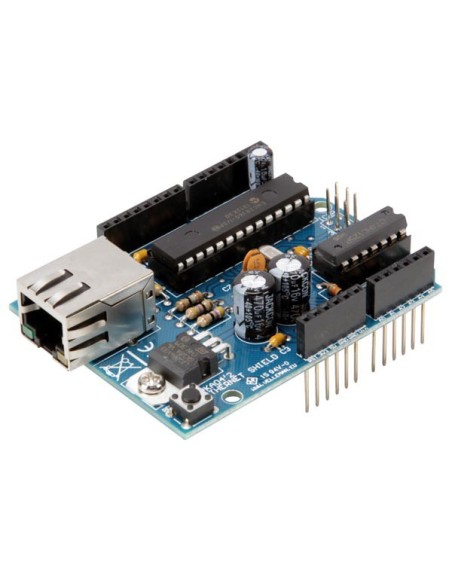

ETHERNET SHIELD FOR ARDUINO®


Configure your Arduino as a simple web server or let it get data from the worldwide web. Also available in kit version [product name=KA04]KA04[/product].

Specification(s):
  • based on a Microchip ENC28J60 chip
  • downloadable sample sketches and library

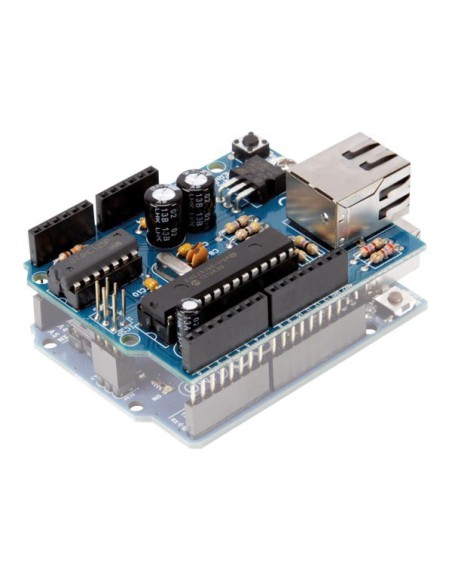

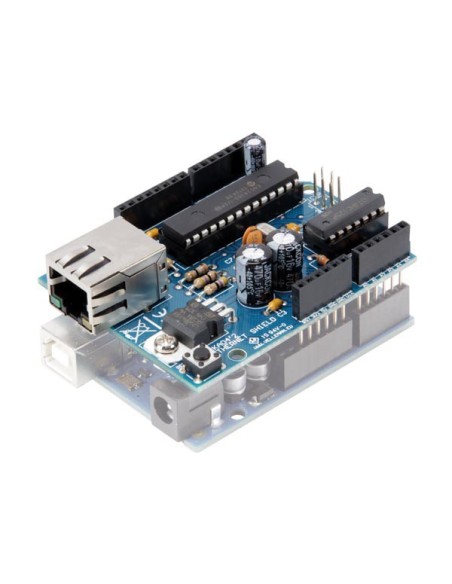

  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)
Feature(s):
  • data rates up to 10 Mbps
  • integrated MAC controller
  • 8 kB Transmit / Receive Packet Dual Port Buffer
  • the MAC controller supports both Unicast, Multicast and Broadcast packets, has a programmable (up to 64-byte) pattern matching feature within a packet at user defined offset and programmable wake-up on multiple packet formats (Magic Packet, Unicast, Multicast, Broadcast, specific packet match or any packet)
  • uses pin 10 and 2 on an Arduino UNO™ board. It also uses the ICSP connector as a serial connection to the shield to free up I/O pins
  • dimensions: 80 x 55 x 30 mm / 3.15 x 2.16 x 1.18"


  • EAN: 5410329730239
