WPK04
Available
€24.95
Tax included

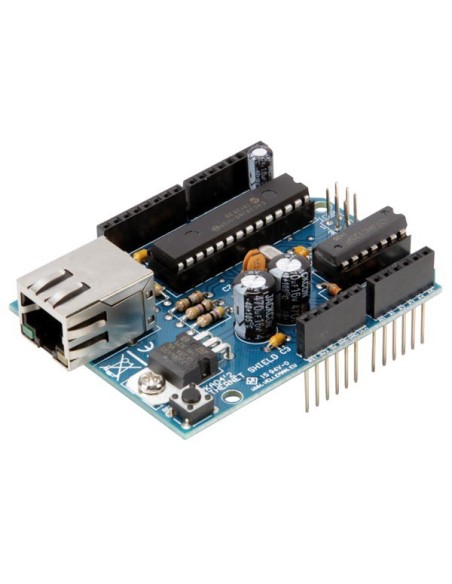

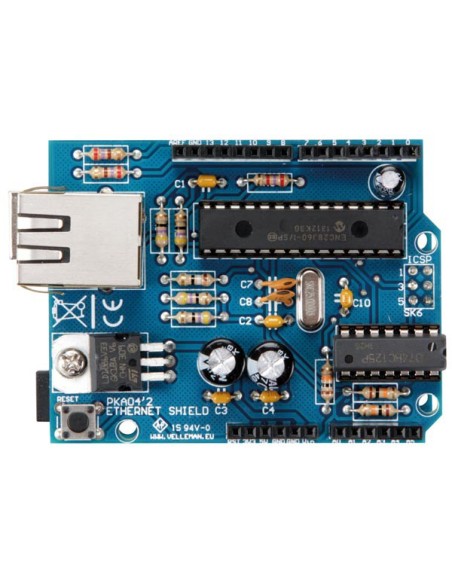

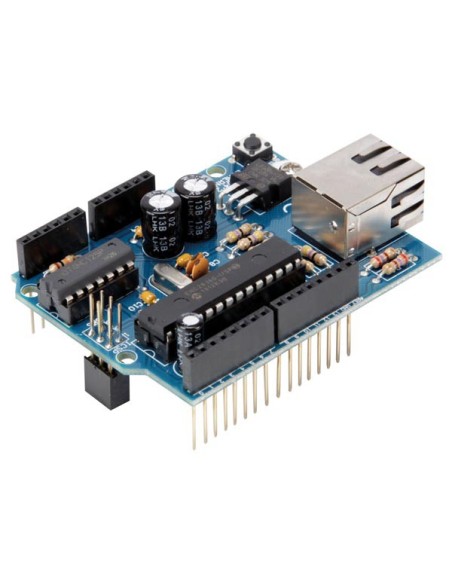

Ethernet shield for Arduino®


Configure your Arduino as a simple web server or let it get data from the worldwide web. Also available as completely mounted module [product name=WPSH04][/product].

Specification(s):
  • based on a Microchip ENC28J60 chip
  • downloadable sample sketches and library

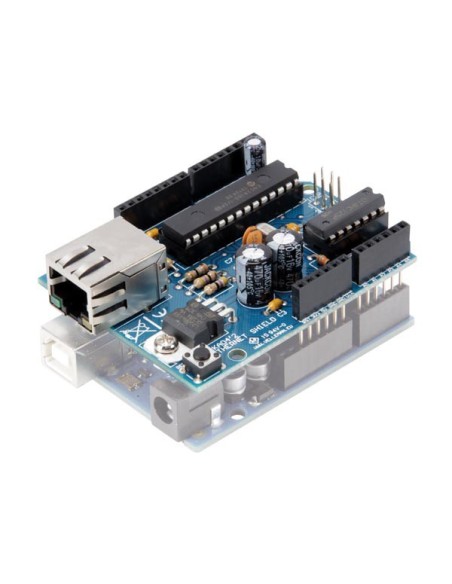

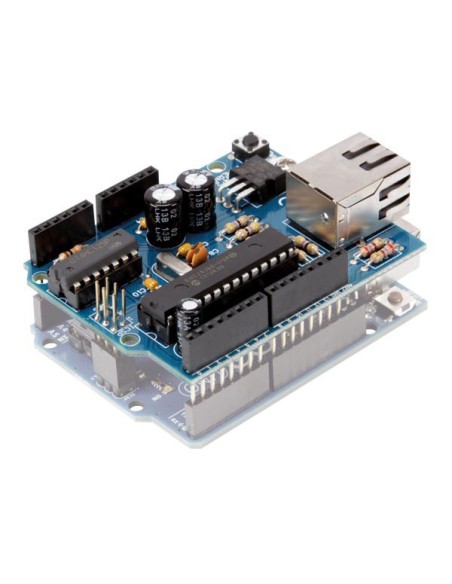

  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)
Feature(s):
  • data rates up to 10 Mbps
  • integrated MAC controller
  • 8 kB Transmit / Receive Packet Dual Port Buffer
  • the MAC controller supports both Unicast, Multicast and Broadcast packets, has a programmable (up to 64-byte) pattern matching feature within a packet at user defined offset and programmable wake-up on multiple packet formats (Magic Packet, Unicast, Multicast, Broadcast, specific packet match or any packet)
  • uses pin 10 and 2 on an Arduino UNO™ board. It also uses the ICSP connector as a serial connection to the shield to free up I/O pins
  • dimensions: 68 x 53mm / 2.67 x 2.08"


  • EAN: 5410329732998
