ELECTRONIC SCALE LOAD CELL SENSOR

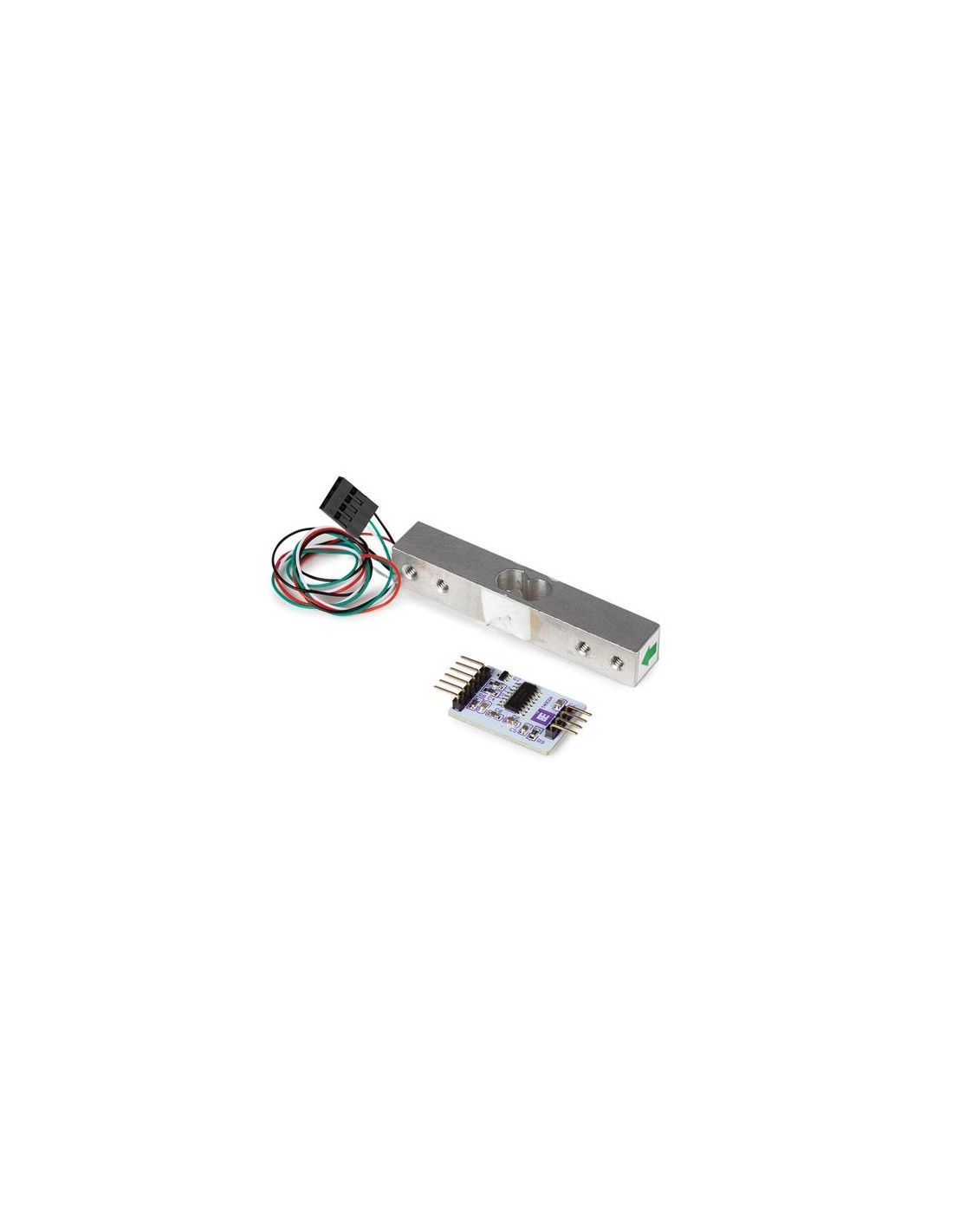

The electronic scale load cell sensor package combines both an accurate load cell rated up to 20 kg, and a sensitive A/D converter board that easily interfaces with a large variety of microcontrollers (such as an Arduino® compatible board). In order to get accurate readings, the fixed side of the load cell should be mounted to a fixed, secure part. It is recommended to also mount a sturdy measuring surface where the weights can be placed upon to the measuring side of the load cell.

Specification(s):

• YZC-131 load cell model
• easy to interface with microcontrollers such as Arduino® or Arduino compatible boards

Feature(s):

• rated load: 20 kg
• nonlinearity: ± 0.05% (Full-Scale)
• hysteresis: 0.0% (Full-Scale)
• repeatability: 0.05% (Full-Scale)
• creep (5 min): 0.05% (Full-Scale)
• temperature stability: 0.003% / °C (Full-Scale)
• A/D converter: HX711
• supply voltage: 5 V DC
• weight: 35 g
• dimensions load cell (W x L x H): 13 x 75 x 12 mm
• Dimensions sensor board (W x L x H): 40 x 20 x 7 mm

• EAN: 5410329732318
