VL53L0X TIME-OF-FLIGHT RANGING AND GESTURE DETECTION SENSOR

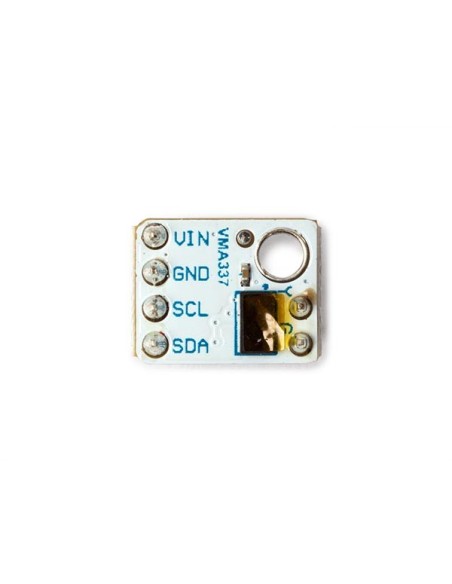

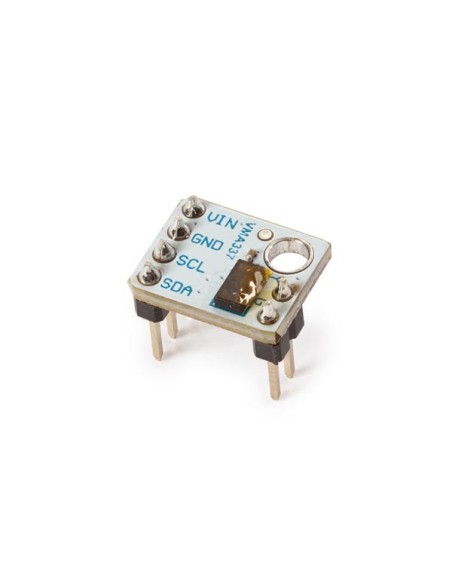

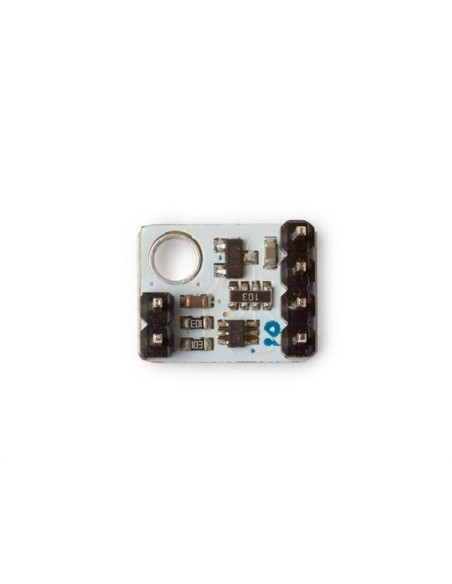

This breakout board is a time-of-flight or laser-ranging sensor that can measure the range to a target object of up to 2 m away.

Specification(s):
  • ST's VL53L0X laser-ranging sensor
Feature(s):
  • power supply: 3.3 - 5 VDC
  • infrared emitter: 940 nm
  • measuring range: 30 to 2000 mm
  • ranging accuracy: +/- 3 %
  • sampling time: <= 30 ms
  • operating temperature: -20 to 70 °C
  • interface type : I2C
  • supply current: 10 mA
  • XSHUT and GDPIO voltage: max 2.8 V


  • EAN: 5410329730130
