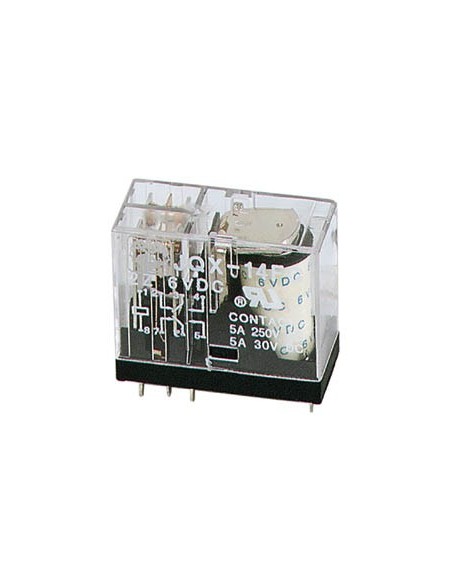

VERTICAL RELAY 5A/30VDC-220VAC 2 x INVERTERS 24Vdc
VR5V242CN
Available
€6.96
Tax included
VERTICAL RELAY 5A/30VDC-220VAC 2 x INVERTERS 24Vdc
Specification(s):
- suitable for switching power up to 2200VA
- compact size allows mounting in a confined space
- dielectric strength: 1000VAC
- Physical properties
- Intern contact material: Silver cadmium oxide (AgCdO)
- Number of inverters: 2
- Electrical data
- Maximum switching voltage rating VAC: 220 V
- Switching current rating VDC: 5 A
- Dielectric strength frequency rating: 50 Hz
- Dielectric strength voltage rating VAC: 1000 V
- Coil voltage rating VDC: 24 V
- Coil resistance: 1150 ohm
- Technical data
- Mounting type: PCB
- Nominal operating power: 0.56 W
- Type: Vertical relay
- Environmental data
- Operating temperature: -40-70 °C
- Operational properties
- Contact type: Inverter
- Product basic info
- Colour: Transparent
- Depth: 1 cm
- Height: 2 cm
- Weight: 18.6 g
- Width: 3 cm
- Material: ABS
- EAN: 5410329440268
