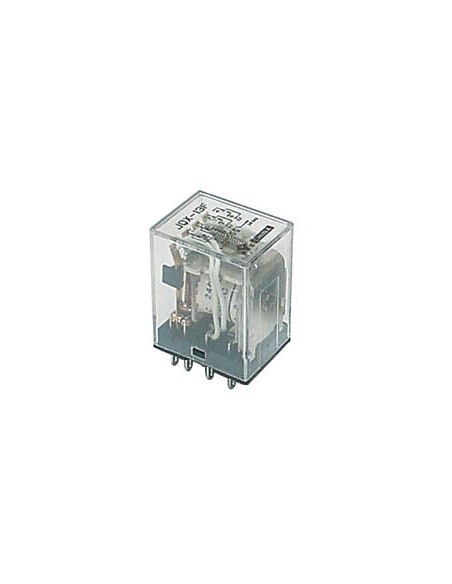

HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER 12Vdc
HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER 12Vdc
HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER...
HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER...

HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER 12Vdc

VR3HD124C
Available
€8.95
Tax included
HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTER 12Vdc


Specification(s):
  • heavy-duty switching power up to 2200VA
  • used in communication equipment, home appliances, electric devices, etc...
Feature(s):
  • Physical properties
  • Intern contact material: Silver cadmium oxide (AgCdO)
  • Number of inverters: 4
  • Electrical data
  • Maximum switching voltage rating VAC: 220 V
  • Switching current rating VDC: 3 A
  • Dielectric strength frequency rating: 50 Hz
  • Dielectric strength voltage rating VAC: 1000 V
  • Coil voltage rating VDC: 12 V
  • Coil resistance: 160 ohm
  • Technical data
  • Mounting type: PCB
  • Nominal operating power: 0.9 W
  • Type: Heavy - duty relay
  • Environmental data
  • Operating temperature: -55-55 °C
  • Operational properties
  • Contact type: Inverter
  • Product basic info
  • Colour: Transparent
  • Depth: 2.08 cm
  • Height: 4.04 cm
  • Weight: 31 g
  • Width: 2.68 cm
  • Material: ABS


  • EAN: 5410329271985
