DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc
DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc
DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc
DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc

DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc

VR3D061C6
Available
€4.01
Tax included

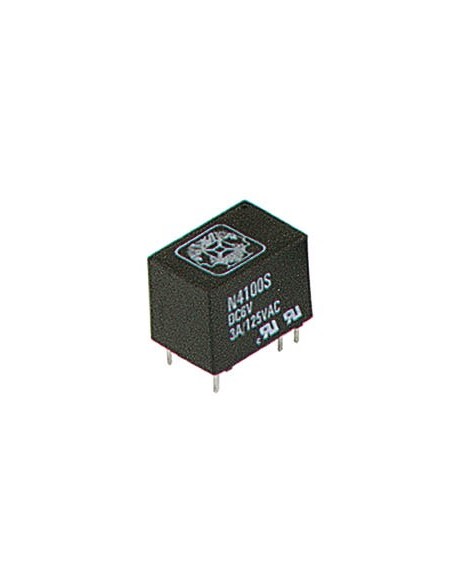

DIL RELAY 3A/120VAC 1 x INVERTER 6Vdc


Specification(s):
  • sealed
  • used in industrial communication, automatic devices, home appliances, wireless electric remote controls, volume controls, toys
Feature(s):
  • Physical properties
  • Internal contact material: Gold-plated
  • Sealed: Yes
  • Electrical data
  • Dielectric strength frequency rating: 50 Hz
  • Dielectric strength voltage rating VAC: 500 V
  • Maximum contact voltage rating VAC: 120 V
  • Maximum contact voltage rating VDC: 24 V
  • Coil voltage rating VDC: 6 V
  • Coil resistance: 90 ohm
  • Technical data
  • Number of contacts: 1
  • Environmental data
  • Operating temperature: -25-55 °C
  • Operational properties
  • PCB mounting type: Through-hole mounting
  • Contact type: Inverter
  • Power supply
  • Power consumption: 400 mW
  • Product basic info
  • Colour: Black
  • Depth: 10.8 mm
  • Height: ± 15.9 mm
  • Weight: ± 3.4 g
  • Width: 15.8 mm


  • EAN: 5410329645342
