VR1D242C
Available
€4.40
Tax included

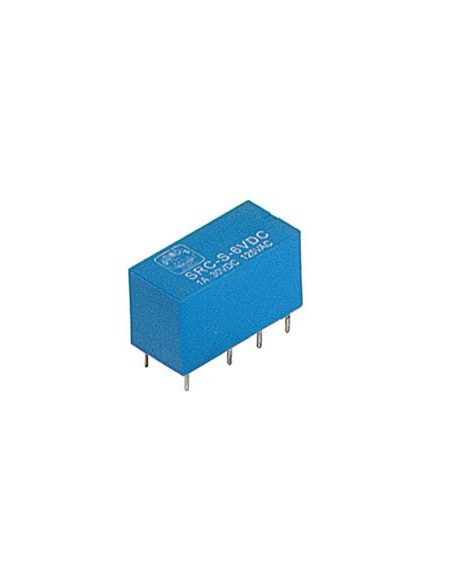

DIL RELAY 1A/30VDC-125VAC 2 x INVERTERS 24Vdc


Specification(s):
  • sealed
  • high sensitivity and reliability
  • compact design, not expensive, for PCB mounting
  • used in communication, automatic office equipment, instruments, meters, computers and industrial applications
Feature(s):
  • Physical properties
  • Internal contact material: Gold-plated
  • Sealed: Yes
  • Electrical data
  • Dielectric strength frequency rating: 50 Hz
  • Dielectric strength voltage rating VAC: 500 V
  • Maximum contact voltage rating VAC: 125 V
  • Maximum contact voltage rating VDC: 30 V
  • Coil voltage rating VDC: 24 V
  • Coil resistance: 1280 ohm
  • Technical data
  • Number of contacts: 2
  • Environmental data
  • Operating temperature: -25-55 °C
  • Operational properties
  • PCB mounting type: Through-hole mounting
  • Contact type: Inverter
  • Power supply
  • Power consumption: 450 mW
  • Product basic info
  • Colour: Blue
  • Depth: 10.6 mm
  • Height: ± 15.9 mm
  • Weight: ± 4.6 g
  • Width: 20.6 mm


  • EAN: 5410329271992
