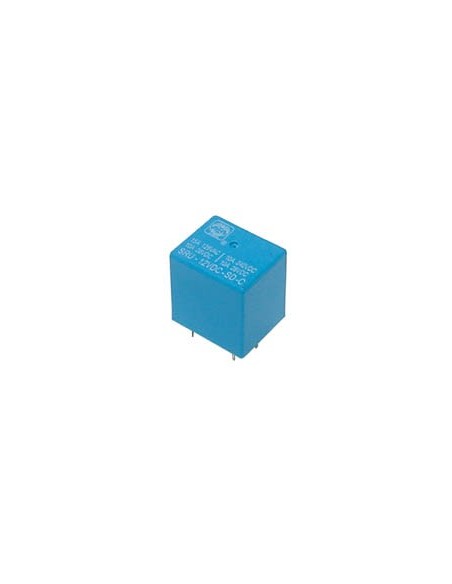

MINIATURE RELAY 15A/28VDC-125VAC 7A/220VAC 1 x INVERTER 6Vdc
VR15M061C
Available
€4.45
Tax included
MINIATURE RELAY 15A/28VDC-125VAC 7A/220VAC 1 x INVERTER 6Vdc
Specification(s):
- compact and light design
- low coil power consumption
- used in home appliances, automatic systems, electronic equipment, instruments and meters
- Physical properties
- Intern contact material: Silver cadmium oxide (AgCdO)
- Number of inverters: 1
- Electrical data
- Maximum switching voltage rating VAC: 125 V
- Maximum switching voltage rating VAC @7A: 220 V
- Switching current rating VDC: 15 A
- Dielectric strength frequency rating: 50 Hz
- Dielectric strength voltage rating VAC: 1000 V
- Coil voltage rating VDC: 6 V
- Coil resistance: 90 ohm
- Maximum switching current rating VAC: 15 A
- Technical data
- Mounting type: PCB
- Nominal operating power: 0.45 W
- Type: Super miniature relay
- Environmental data
- Operating temperature: -40-70 °C
- Operational properties
- Contact type: Inverter
- Product basic info
- Colour: Blue
- Depth: 2.02 cm
- Height: 2.45 cm
- Weight: 12 g
- Width: 2 cm
- Material: ABS
- EAN: 5410329665258
