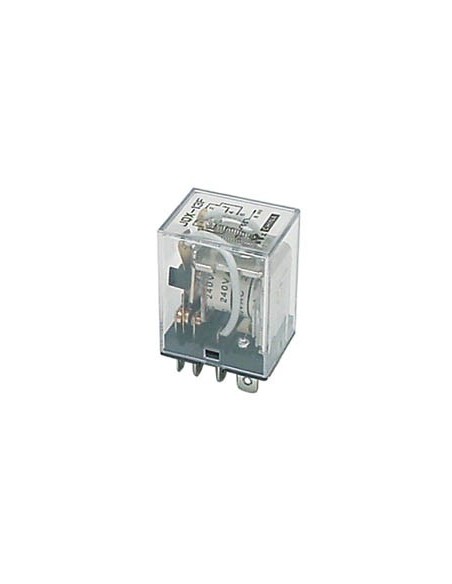

HEAVY-DUTY RELAY 10A/24VDC-220VAC 2 x INVERTERS 240Vac
VR10HD2402C
Available
€8.95
Tax included
HEAVY-DUTY RELAY 10A/24VDC-220VAC 2 x INVERTERS 240Vac
Specification(s):
- heavy-duty switching power up to 2200VA
- used in communication equipment, home appliances, electric devices, etc...
- Physical properties
- Intern contact material: Silver cadmium oxide (AgCdO)
- Number of inverters: 2
- Electrical data
- Maximum switching voltage rating VAC: 220 V
- Switching current rating VDC: 10 A
- Dielectric strength frequency rating: 50 Hz
- Dielectric strength voltage rating VAC: 1000 V
- Coil resistance: 14400 ohm
- Coil voltage rating VAC: 240 V
- Maximum switching current rating VAC: 10 A
- Technical data
- Mounting type: PCB
- Nominal operating power: 1.2 W
- Type: Heavy - duty relay
- Environmental data
- Operating temperature: -55-55 °C
- Operational properties
- Contact type: Inverter
- Product basic info
- Colour: Transparent
- Depth: 2.12 cm
- Height: 4.15 cm
- Weight: 30.5 g
- Width: 2.7 cm
- Material: ABS
- EAN: 5410329274801
