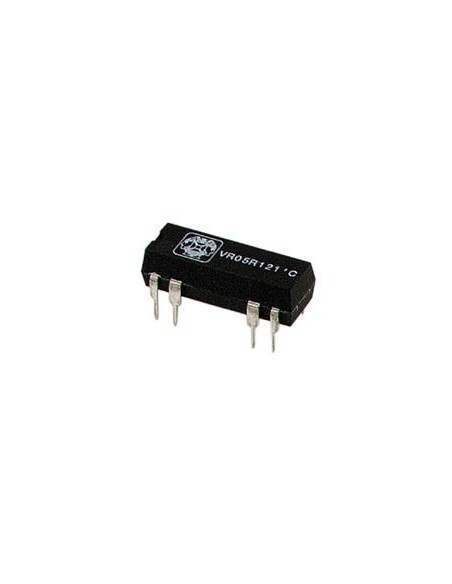

VR05R121A
Available
€5.95
Tax included
DIL RELAY 0.5A/10W MAX. 1 x on 12Vdc


Specification(s):
  • for cost-effective miniature switching solutions
  • state-of-the-art capsule designs
  • moulded construction for compatibility with automatic board processing
  • epoxy-moulded dual-in-line package
  • completely washable
Feature(s):
  • Physical properties
  • Internal contact material: Epoxy coating
  • Sealed: No
  • Electrical data
  • Dielectric strength voltage rating VDC: 250 V
  • Maximum contact voltage rating VDC: 30 V
  • Coil voltage rating VDC: 12 V
  • Coil resistance: 1000 ohm
  • Technical data
  • Number of contacts: 1
  • Environmental data
  • Operating temperature: -40-80 °C
  • Operational properties
  • PCB mounting type: Through-hole mounting
  • Contact type: NO
  • Power supply
  • Power consumption: 144 mW
  • Product basic info
  • Colour: Black
  • Depth: 8.9 mm
  • Height: ± 8.8 mm
  • Weight: ± 1.8 g
  • Width: 19.6 mm


  • EAN: 5410329733858
