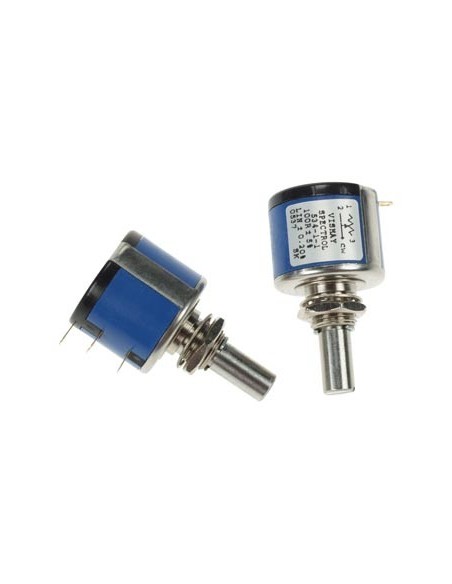

This 10-turn precision potentiometer was developed for a wide range of applications requiring high resolution, a low temperature coefficient and high linearity. With a power rating of 2W at 70°C and a linearity of 0.1%, this multiturn potentiometer is an important addition to our wide range of professional spindle-operated products.
Specification(s):
Specification(s):
- special resistance tolerances to 1%
- rear shaft extensions
- rear shaft support bearing
- non turn lug
- insulating plastic shaft
- special independent linearity to ±0.75%
- dual gang configuration
- high torque
- centre tap
- special markings
- front shaft extensions
- servo unit available
- slipping clutch
- dual concentric shafts
- resistance range: 100E to 100K (E3-series)
- tolerance: ±5%
- max. operating voltage: 500Vdc
- temperature range: -55°C to +125°C
- rotation: 10 turns
- EAN: 5410329297886
