POTMETER MONO LIN 10K

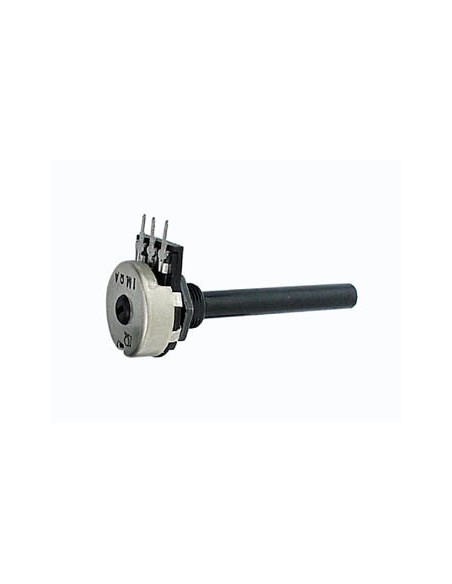

20mm rotary carbon track potentiometers for PCB mounting. Metal/plastic housing and plastic axe (Ø 6mm). Optional single-pole switch (1A-24Vdc / 0.3A-250Vac).

Specification(s):
  • linear (A-series)
  • mono
  • no switch
  • OMEG
Feature(s):
  • resistance range: 100E to 4M7 (E3-series)
  • max. power dissipation: 0.4 W
  • tolerance: ±20%
  • max. working voltage: 500 VDC
  • temperature range: -10°C to +70°C
  • electrical rotation: 300° ± 5°


  • EAN:
