10 TURN POTMETER 100E
10 TURN POTMETER 100E
10 TURN POTMETER 100E
10 TURN POTMETER 100E

10 TURN POTMETER 100E

E100HP
Available
€38.96
Tax included

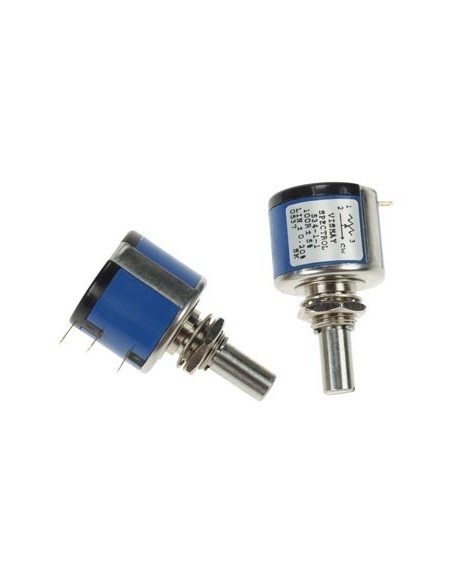

10 TURN POTMETER 100E


This 10-turn precision potentiometer was developed for a wide range of applications requiring high resolution, a low temperature coefficient and high linearity. With a power rating of 2W at 70°C and a linearity of 0.1%, this multiturn potentiometer is an important addition to our wide range of professional spindle-operated products.

Specification(s):
  • special resistance tolerances to 1%
  • rear shaft extensions
  • rear shaft support bearing
  • non turn lug
  • insulating plastic shaft
  • special independent linearity to ±0.75%
  • dual gang configuration
  • high torque
  • centre tap
  • special markings
  • front shaft extensions
  • servo unit available
  • slipping clutch
  • dual concentric shafts
Feature(s):
  • resistance range: 100E to 100K (E3-series)
  • tolerance: ±5%
  • max. operating voltage: 500Vdc
  • temperature range: -55°C to +125°C
  • rotation: 10 turns


  • EAN: 5410329321529
