CERMET TRIMMER MULTI-TURN 50K
CERMET TRIMMER MULTI-TURN 50K
CERMET TRIMMER MULTI-TURN 50K
CERMET TRIMMER MULTI-TURN 50K

CERMET TRIMMER MULTI-TURN 50K

K050TW
Available
€3.30
Tax included
CERMET TRIMMER MULTI-TURN 50K

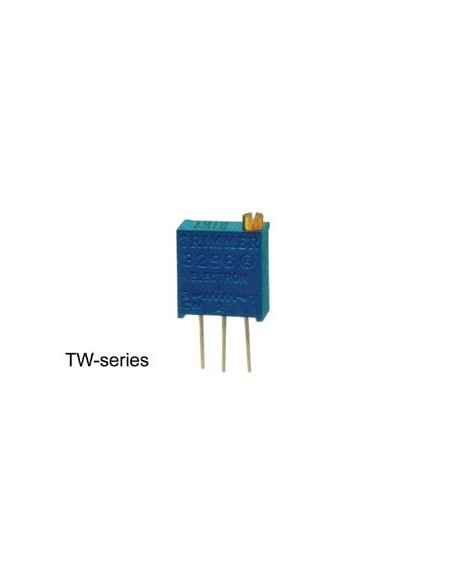

Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.

Specification(s):
  • MEC CITEC 4290W
  • vertical mounting
  • vertical adjustment
  • pin layout: line
  • range: 10E to 5M (E3 series)
Feature(s):
  • power rating: 0.5W at 70°C
  • tolerance: ±10%
  • working voltage: 300Vdc max.
  • rotation:
  • electrical: 22 turns nom.
  • mechanical: 25 turns nom.


  • EAN:
