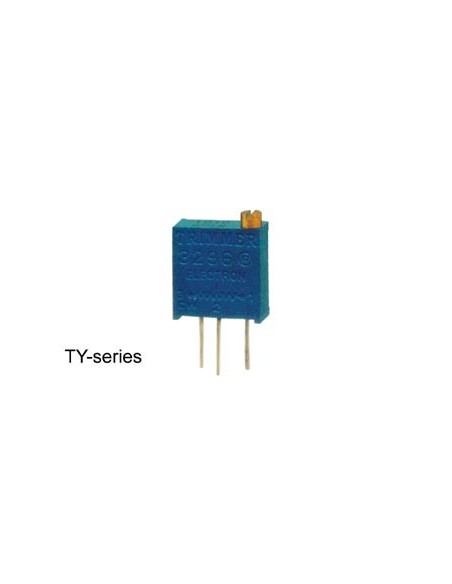

Professional multiturn trimming potentiometers.
The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Specification(s):
Specification(s):
- MEC CITEC 4290Y
- vertical mounting
- vertical adjustment

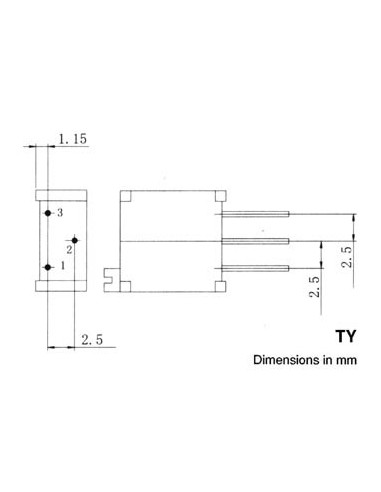

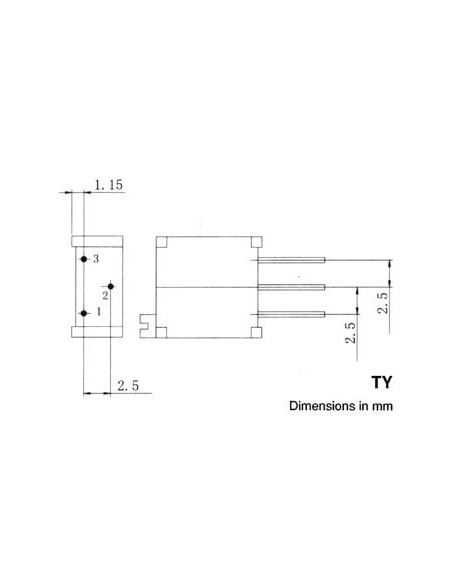

- pin layout: triangle
- range: 100E to 1M (E3 series)
- power rating: 0.5W at 70°C
- tolerance: ±10%
- working voltage: 300Vdc max.
- rotation:
- electrical: 22 turns nom.
- mechanical: 25 turns nom.
- EAN:
