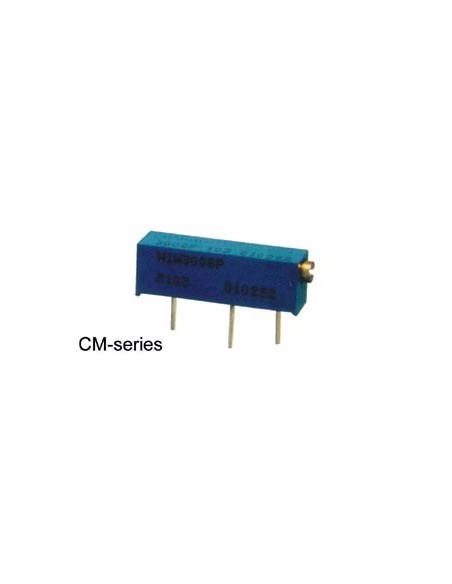

Professional multiturn trimming potentiometers.
The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Specification(s):
Specification(s):
- MEC CITEC 443PW
- horizontal mounting
- horizontal adjustment
- pin layout: triangle
- range: 10E to 2M (E3 series)
- power rating: 0.75W at 70°C
- tolerance: ±10%
- working voltage: 400Vdc
- rotation:
- electrical: 15 turns nom.
- mechanical: 18 turns nom.
- EAN:
