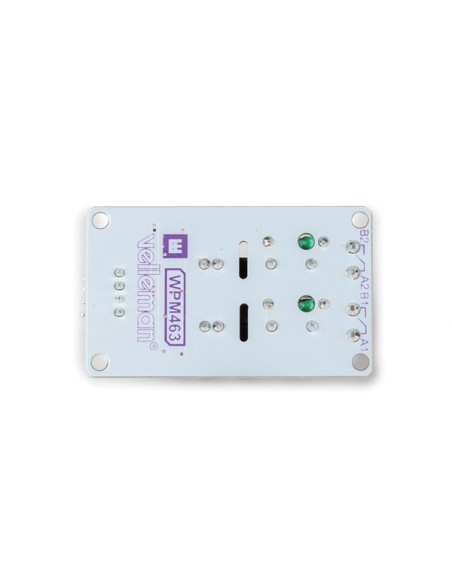

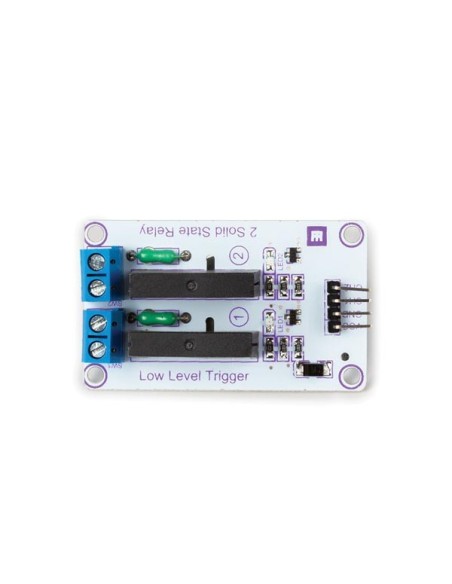

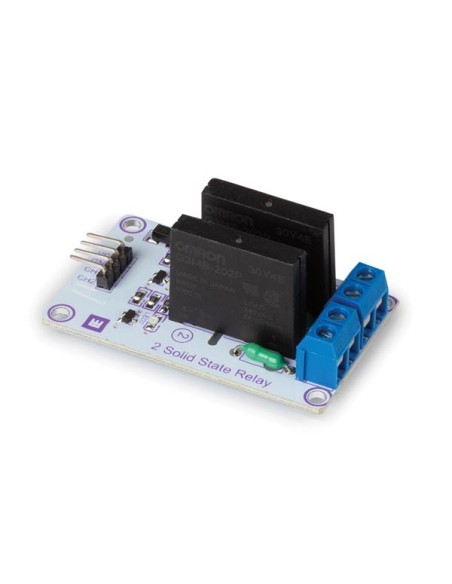

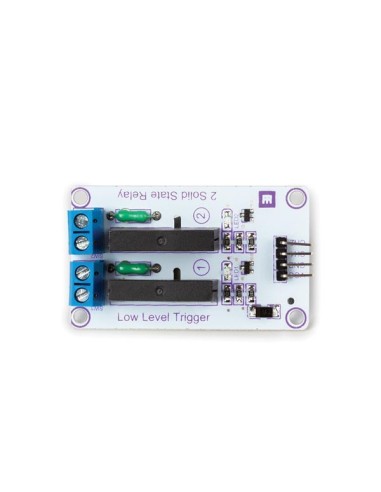

2 CHANNEL SOLID STATE RELAY MODULE

The Whadda two-channel Solid State Relay (SSR) module can be used to quickly and efficiently switch AC loads on and off without using any moving parts (e.g. like a classic electromechanical relay). The SSR module uses a phototriac to provide a galvanic isolation between the logic level side and the AC load side. Both channels can be switched on by providing a LOW logic level signal (0 - 1,5 V), and off by providing a HIGH logic level signal (3 - 5 V) to its corresponding channel signal input. Note that this module can ONLY SWITCH AC CURRENTS, up to a maximum of 2 A, with a maximum voltage of 240 V AC. Trying to use this module to switch DC loads or exceeding the specified limits can damage the module and/or your connected devices!

Specification(s):

• switches up to 2 independent AC loads without using any moving parts
• provides galvanic isolation between logic level side and AC side

Feature(s):

• max load voltage: 240 V AC
• max load current: 2 A
• supply voltage: 5 V DC
• SSR working current: 12,5 mA
• SSR trigger voltage: 0 - 1,5 V DC
• SSR trigger current: 2 mA
• weight: 19,7 g
• dimensions (W x L x H): 55 x 33 x 23 mm

• EAN: 5410329732073
